July New Products

AGFRC Launches Two New High-Performance Brushless Servos Winch – SA50FHLW & SA75BHLW!

We are proud to introduce the latest additions to our servo family: the SA50FHLW and SA75BHLW. Engineered for precision, power, and durability, these new models are designed to meet the demanding needs of advanced RC, robotics, and industrial applications.

Both models share a 25T spline (φ5.92mm) horn interface, AL6061T6 aluminum case and accessories, and are fully programmable for customized tuning. Wiring includes 200mm (SA50FHLW) or 300mm (SA75BHLW) 22AWG cables with standard black/Black/grey color coding.

Whether you need compact efficiency or brute strength, the SA50FHLW and SA75BHLW are ready to elevate your next project.

Available now. Learn more at agfrc.com / agf-rc.com.

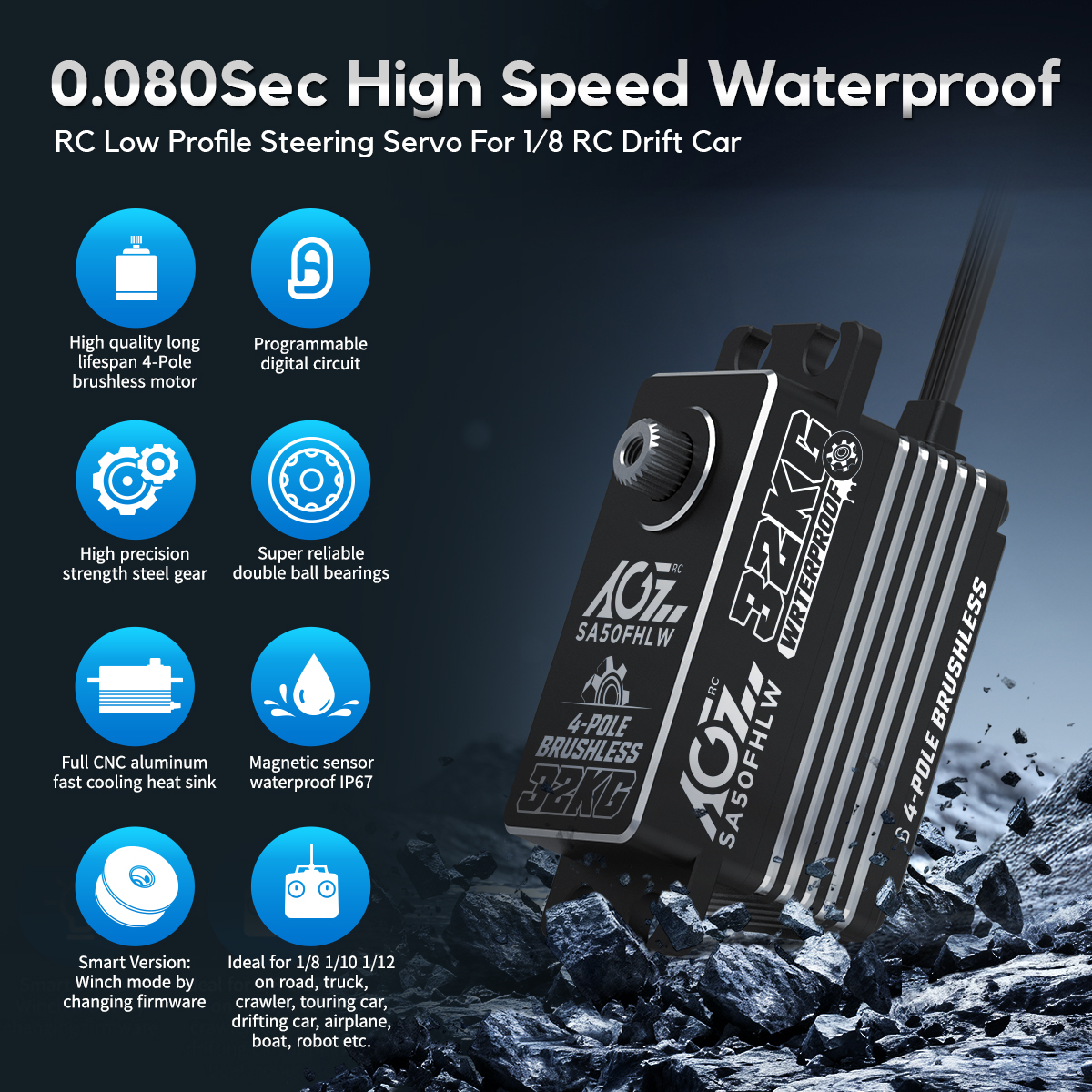

Operating Voltage

4.8V ~ 8.4V

Frequency Range

1520µs / 333Hz

Gear Material

Strength Steel

Motor Type

4-Pole Brushless Motor

Sensor Type

Magnetic Encoder

Wire

TYU 200mm / 22AWG

Dimension

40.8 x 20.0 x 27 mm

Net Weight

54 g(1.9 oz)

Operating Speed

0.120 sec/60° @4.8V

0.105 sec/60° @6.0V

0.090 sec/60° @7.4V

0.080 sec/60° @8.4V

Operating Torque

20 kg·cm (278 oz·in) @4.8V

24 kg·cm (333 oz·in) @6.0V

28 kg·cm (389 oz·in) @7.4V

32 kg·cm (445 oz·in) @8.4V

Application: Steering for 1/10 1/8 Scale on-road cars, drift cars, and touring cars throttle/brake control in nitro-powered RC cars.

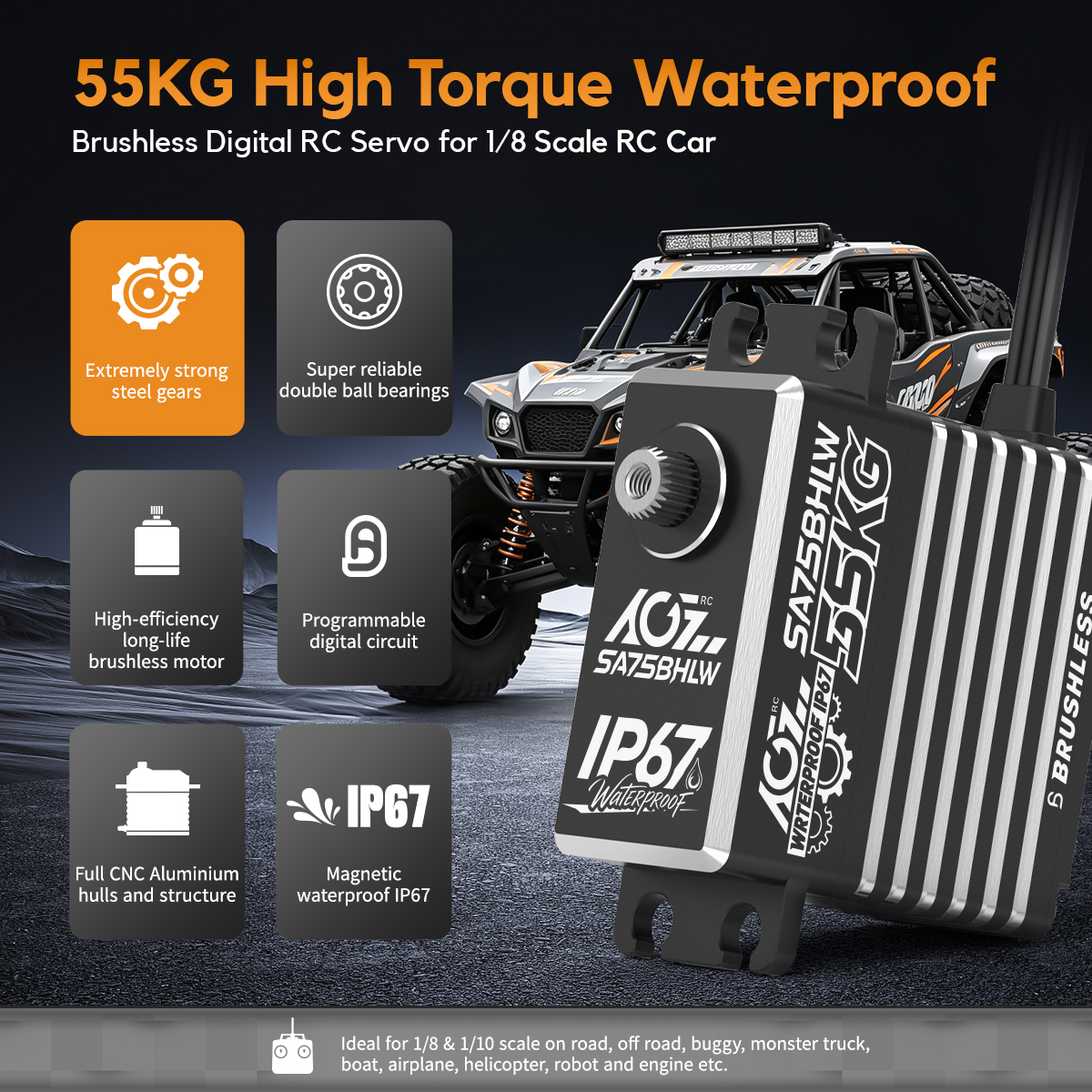

Operating Voltage

4.8V ~ 8.4V

Frequency Range

1520µs / 333Hz

Gear Material

Strength Steel

Motor Type

Brushless Motor

Sensor Type

Magnetic Encoder

Wire

TYU 300mm / 22AWG

Dimension

40 x 20 x 41.8 mm

Net Weight

85 g (3.0 oz)

Operating Speed

0.175 sec/60° @4.8V

0.142 sec/60° @6.0V

0.125 sec/60° @7.4V

0.110 sec/60° @8.4V

Operating Torque

35 kg·cm (486 oz·in) @4.8V

40 kg·cm (556 oz·in) @6.0V

49 kg·cm (681 oz·in) @7.4V

55 kg·cm (764 oz·in) @8.4V

Application: Ideal for 1/8 1/10 Scale on road, off road, buggy, monster truck, boat, airplane, helicopter, robot and engine, etc.
