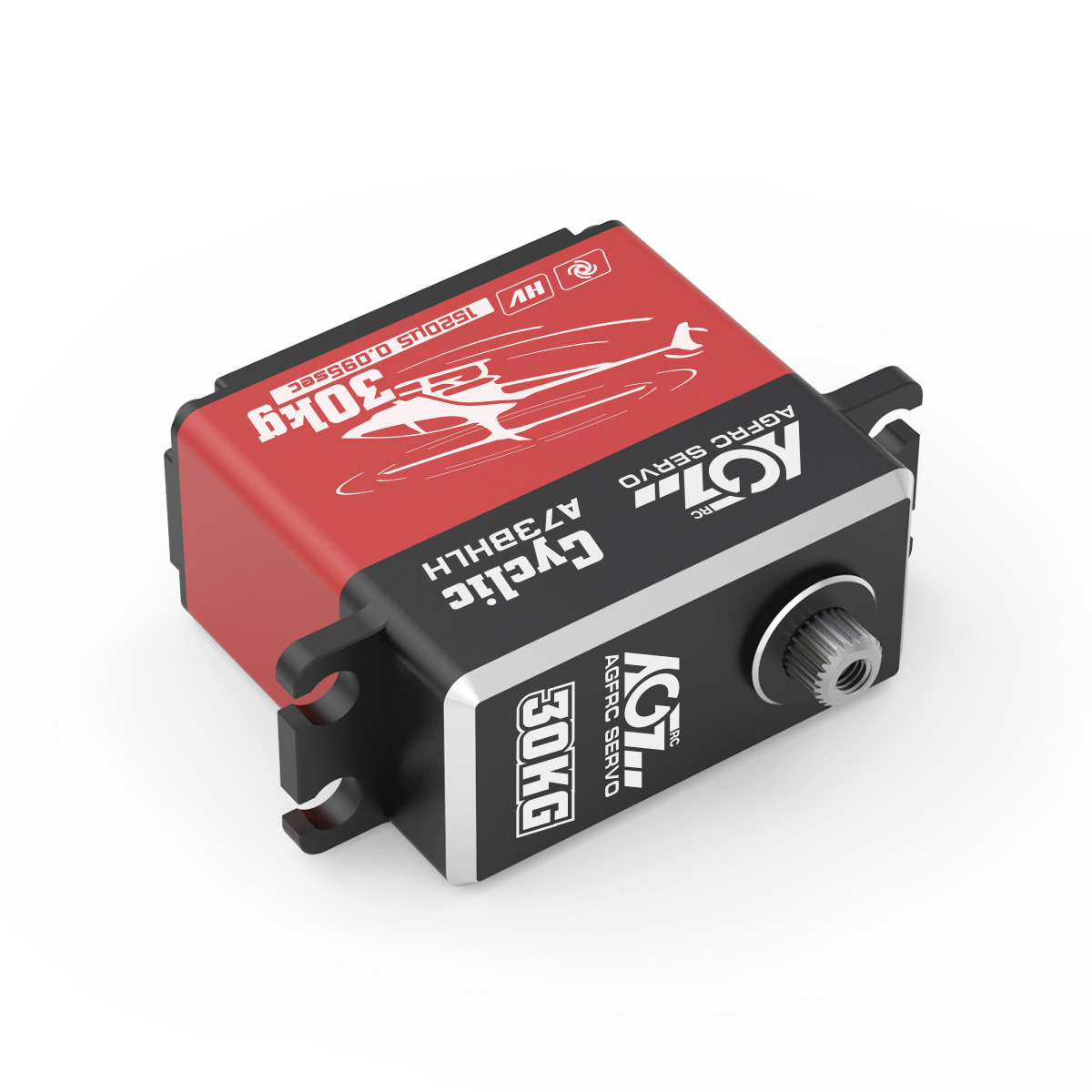

AGFRC A73BHLH black and red edition nice looking 30kg torque 0.095sec speed standard digital Cyclic Servo, make in good heat dissipation CNC aluminum body for cooler and smoother operating temps. Features an reliable brushless motor, sturdy steel and titanium gear for unmatched performance and strength. With the help of 30kg-cm powerful torque, it could easy to control pitch and roll for the helicopter. Enhanced the potentiometer angle sensor to ensure the servo motor could work well.
FEATURES
∙ Smooth Double Ball Bearings
∙ 8.4V High Voltage Compatible
∙ Good stability Brushless Motor
∙ Precision Potentiometer Angle Sensor
∙ High Accuracy Strength Steel+Titanium Gear
∙ High Performance Digital Servo Perfect For 450-700 Class Helicopter
PRODUCT SPECIFICATIONS
Voltage 4.8V ~ 8.4V Direction CCW
Gear Material Strength Steel Temperature -15°C ~ +70°C
Pulse Width 500 ~ 2500 µSec Refresh Rate 1520 µS / 333 Hz
Dimension 40*20*37.5 mm Motor Type Brushless
Bearing 2BB Dead Band 2 µSec
Net Weight 73.5 g Gear Spline 25T-ɸ5.92 mm
Case Material AL6061T6 Travel Angel 180 ± 10°
Wire JR 300mm / 22AWG Wire Color Black | Black | Grey
Operating Speed Stall Torque
0.150 sec/60° @4.8V 22.0 kg·cm (305 oz·in) @4.8V
0.130 sec/60° @6.0V 24.0 kg·cm (333 oz·in) @6.0V
0.110 sec/60° @7.4V 27 kg·cm (375 oz·in) @7.4V
0.095 sec/60° @8.4V 30 kg·cm (417 oz·in) @8.4V
