AGFrc A80BHSF 36kg Toruqe 0.071sec Speed Steel Gear 3BB 180 Degree Programmable Digital 25T Brushless Standard Servo For Rc Aircraft
Item Name:
A80BHSF
Weight:
79g
Voltage:
4.8-8.4V
Retail Price:
US$79.99/PC
Application:
RC Airplanes, Fixed Wing Aircraft

A80BHSF is the sister product of A80BHMF with the same internal structure design, but has different parameters. It is designed with specific firmware for aircraft, providing more stable and precision centering during fly. Featuring with brushless motor to provide longer life operation and cooler operating temps. It can work well is determined by its internal structure, using the design of metal three ball bearings and patented steel gear and titanium gear. It is a dust-proof and splash-proof servo perfectly suited for daily flying, although flying in a rainy conditions is also no problem, just DO NOT let servo completely submerged in water. Driven 4.8V to 8.4V widely voltage, can reach 36kg-cm torque and 0.071sec speed at 8.4V, it is a programmable digital fast response servo well fit in RC Aircraft applications.


Feature

Fully CNC Aluminium Case

Long Performance Life Brushless Motor

High Precision Metal Three Ball Bearings

Digital Programmable 25T Standard Servo

Extremely Stable Potentiometer Angle Sensor

Patented Steel Gear And Titanium Gears Train

High Torque HV and Non-HV Applications

Ideal For 30-200cc Airplane, fixed-wind Aircrafts etc.

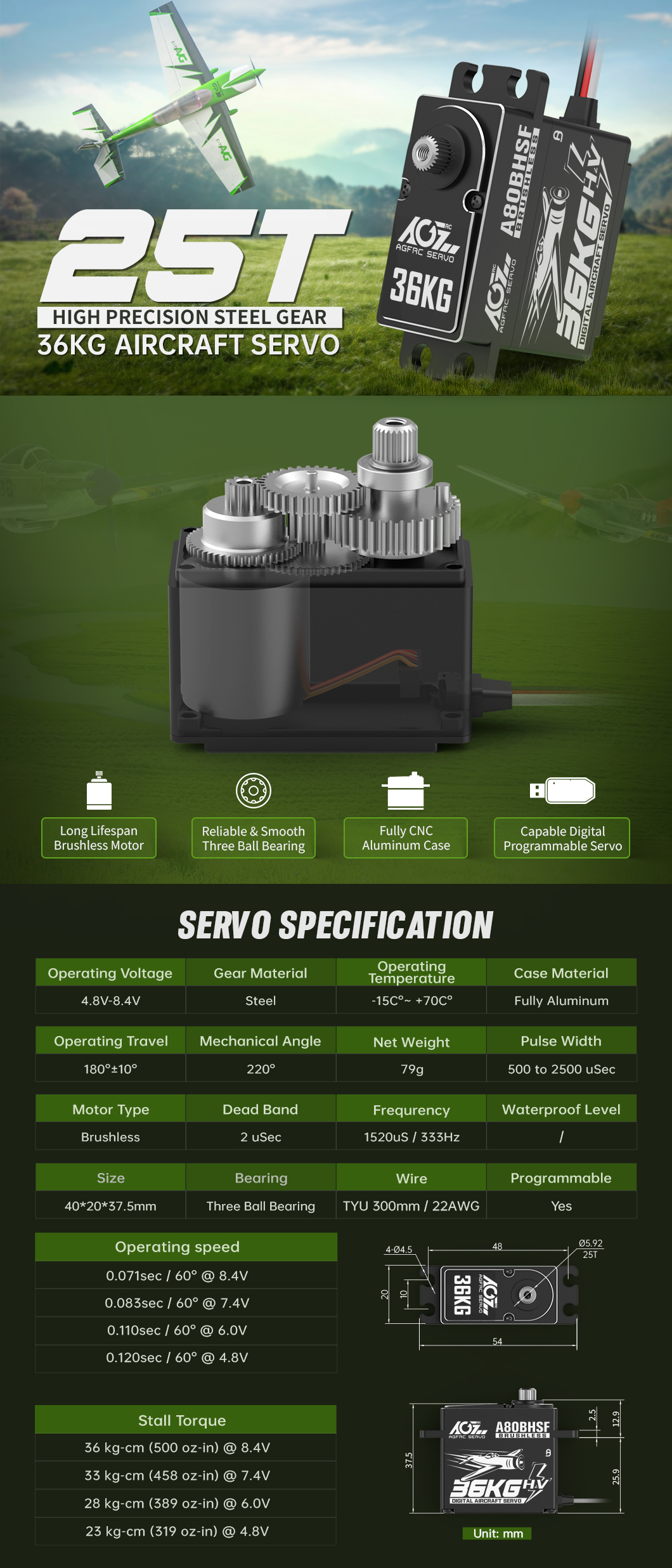

Specification

A80BHSF

Operating Voltage: 4.8-8.4V

Operating speed: 0.120sec/ 60° @ 4.8V

Operating speed: 0.110sec/60° @ 6.0V

Operating speed: 0.083sec/60° @ 7.4V

Operating speed: 0.071sec/60° @ 8.4V

Stall Torque: 23 kg-cm (319 oz-in) @ 4.8V

Stall Torque: 28 kg-cm (389 oz-in) @ 6.0V

Stall Torque: 33 kg-cm (458 oz-in) @ 7.4V

Stall Torque: 36 kg-cm (500 oz-in) @ 8.4V

Gear: Strength Steel + Titanium

Motor: Brushless

Size: 40*20*37.5mm (1.57 x 0.78 x 1.46 in)

Weight: 79g

Connector Wire: TYU 300mm / 22AWG
