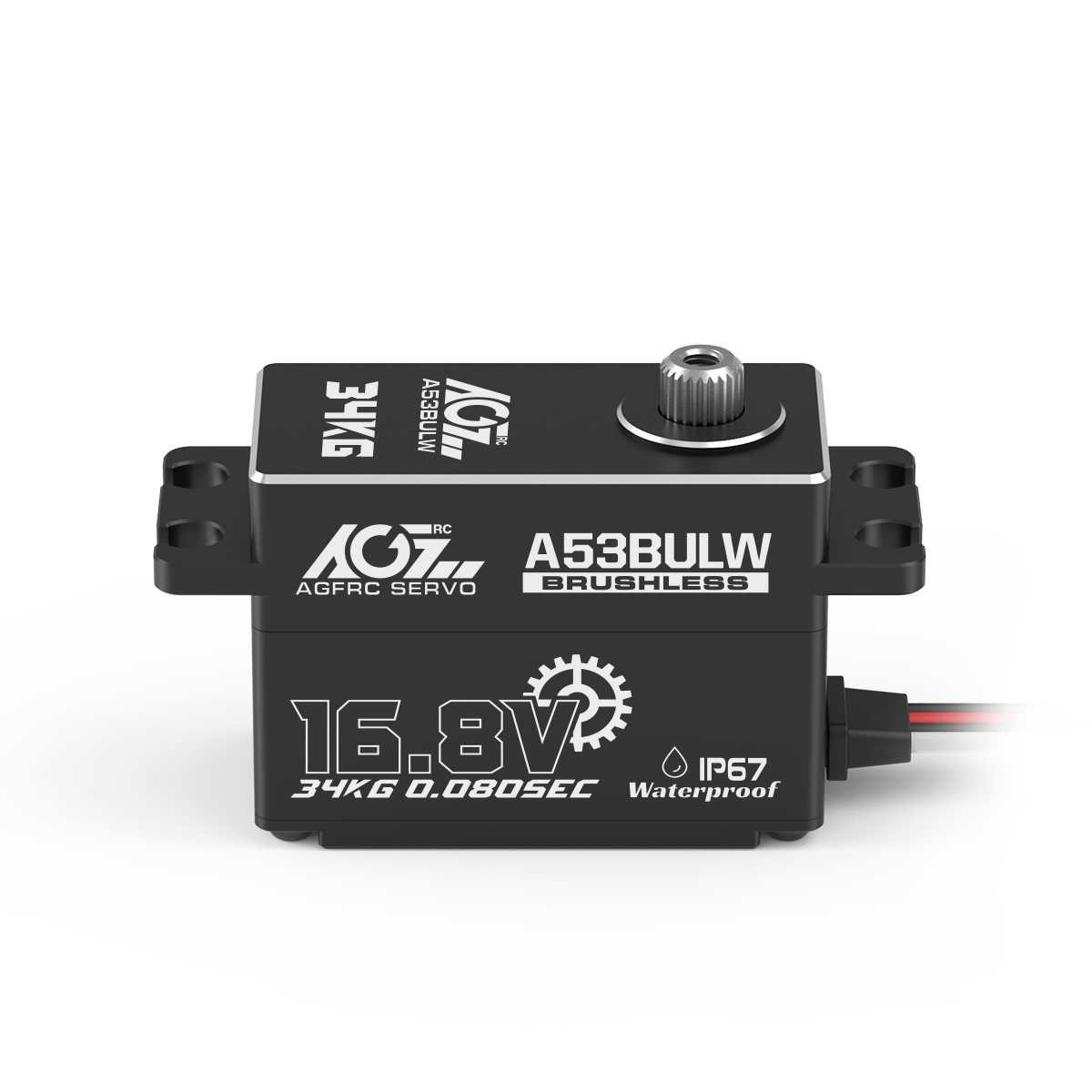

AGFRC A53BULW SERVO PURCHASE LINK
A53BULW is a budget 4s low profile servo which is designed for the beginner and hobbyists seek for better price option. Dust-proof and splash-proof CNC shell design, magnetic sensor waterproof reaches IP67 grade, which can be used for harsh environments such as rainy days, muddy, streams, and humidity. With the cooperation of a long-life brushless motor and reinforced steel gears, the work is more efficient, precise and smooth. Good choice for your rc crawler and bring you the unprecedented feelings.
Ideal For 1/8, 1/10 Scale Off-Road 4WD Buggy, Monster Truck, Helicopter, Robot And Engine etc.
FEATURES
• 3s/4s Lipo Direct Power
• High Quality Long Life Span Brushless Motor
• Silky Smooth Double Ball Bearings
• High Accuracy Magnetic Sensor Waterproof IP67
• Programmable Digital Circuits
PRODUCT SPECIFICATIONS
Voltage 7.4V ~ 17.0V Direction CCW
Gear Material Strength Steel Temperature -15°C ~ +70°C
Pulse Width 500 ~ 2500 µSec Refresh Rate 1520 µS / 333Hz
Dimension 40.8*20.2*30.2 mm Motor Type Brushless
Bearing 2BB Dead Band 2 µSec
Net Weight 66.5 g Gear Spline 25T-ɸ5.92 mm
Case Material AL6061T6 Travel Angel 180 ± 10°
Wire TYU+JST 300mm / 22AWG Wire Color Black | Red | White
Operating Speed Stall Torque
0.105 sec/60° @12.0V 26 kg·cm (361 oz·in) @12.0V
0.100 sec/60° @12.6V 26.6 kg·cm (369 oz·in) @12.6V
0.092 sec/60° @14.4V 30.0 kg·cm (417 oz·in) @14.4V
0.085 sec/60° @16.0V 33.0 kg·cm (458 oz·in) @16.0V
0.080 sec/60° @16.8V 34.0 kg·cm (472 oz·in) @16.8V
