RFS04F Mini Size 2.4G 4CH FASST Compatible Receiver for RC Aircraft
Item Name:
RFSS04F
Weight:
4g
Voltage:
4.8-8.4V
Retail Price:
US$23.99/PC
Application:
Fixed Wing Aircraft, Mini Size Aircraft

Spefication

Item Name: RFSS04F

Operating Voltage: 4.8V~8.4V

Dimension: 38x18x8mm

Weight: 4g

No. Of Channels: 4CH

Antenna: Single Antenna


Compatible

Compatible : Futaba FASSTremote control system

Suitable for Futaba FUTABA 6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG, T12Z, T12FG, TM-14, T14MZ, T18MZ etc. FASST systemcontrol

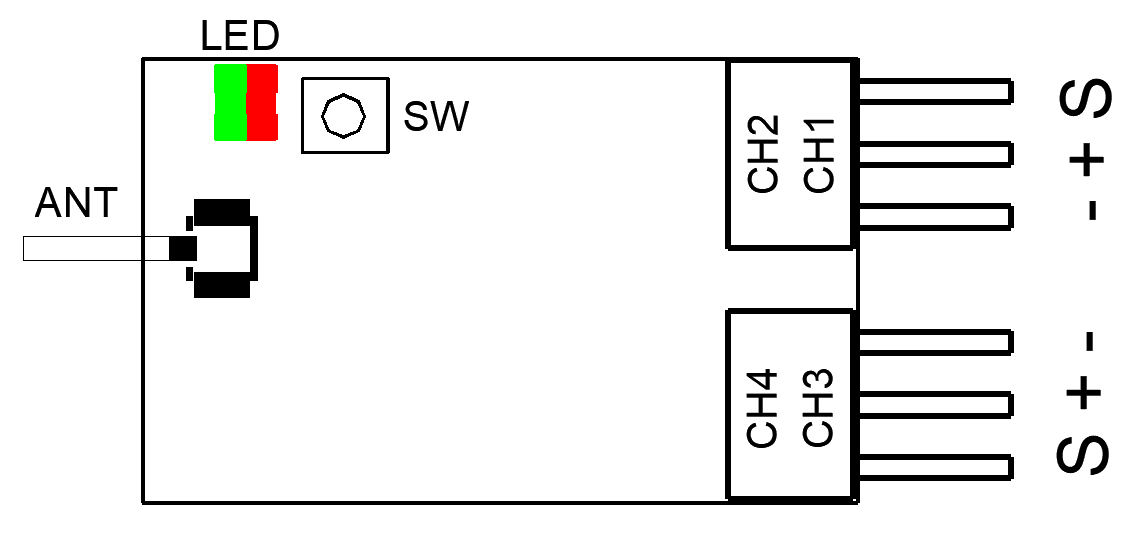

04F

Feature

1) High quality PA to ensure high receiving sensitivity;

2) Short antenna, micro size with 4CH output, especially designed for mini aircraft to save mounting space;

3) Compatible with high frequency Futaba FASST, stronger anti-interference capability.


Bind Procedure

 1. Get the transmitter and receiver ready.

 2. Turn on the transmitter.

 3. Turn on the receiver

 4. Press the SW on the receiver and power on, the Red LED off and Green LED on, mean bind successfully, the receiver start to work; It could be failed to bind as the environment, please repeat the above steps

     It could be failed to bind as the environment, please repeat the above steps


LED Status

O4F-LED

RFSS04F-6
