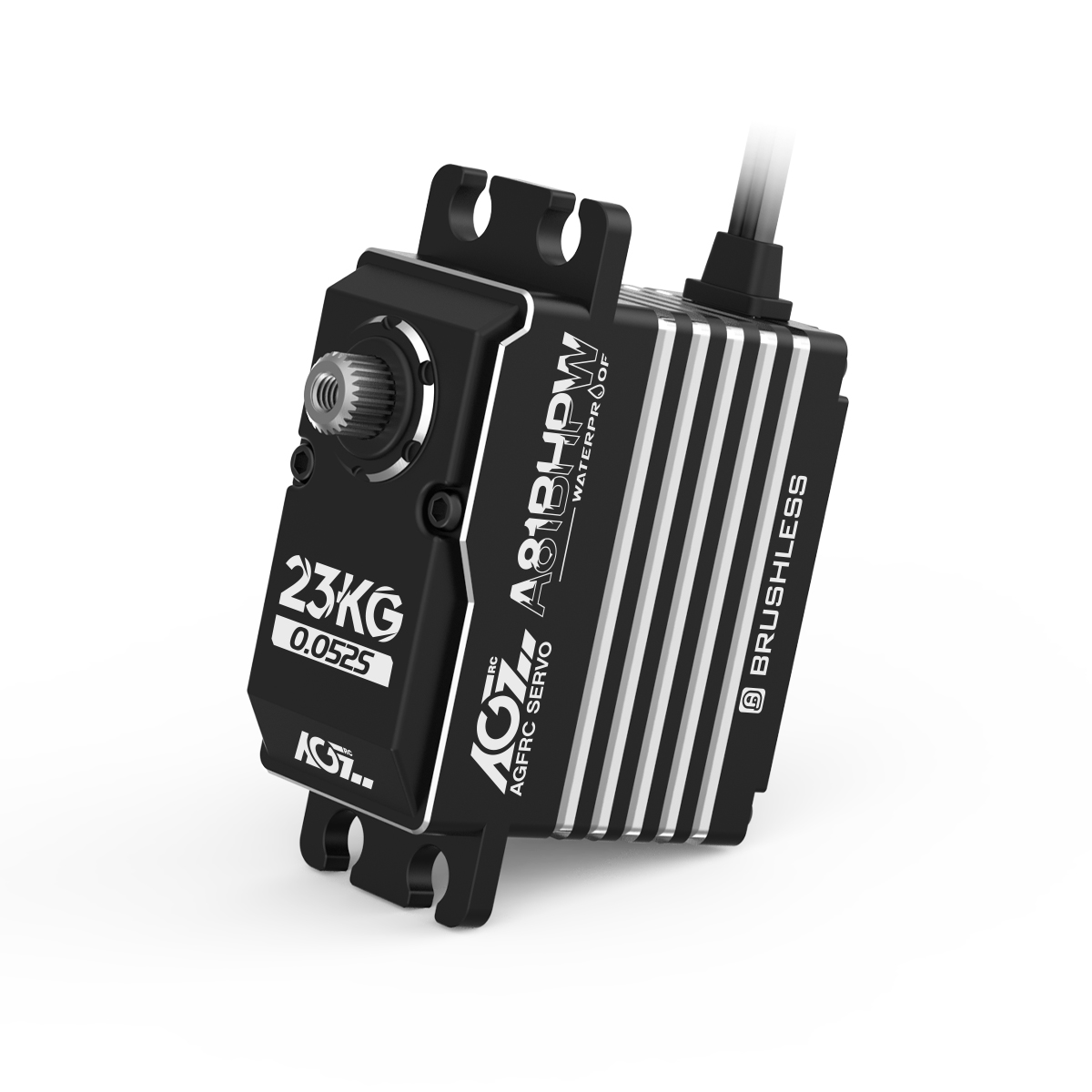

AGFRC A81BHPW SERVO PURCHASE LINK
Waterproof version A81BHPW Programmable Brushless Digital Standard Servo! On the basis of A81BHP servo, it adds IP67 waterproof function, Even in the wet and drizzle environment, can also satisfy your love of a model heart. Lightning speed 0.052s and 23KG torque takes you into the world of speed and passion. The beautiful heat sink design makes the appearance of the servo more sturdy, and the internal structure runs more smoothly. High quality brushless motor and super strong three ball bearings, Not only allow the servo operate for a long time, but also improve the reliability of servo. Of course, the indispensable programmable function can bring you more choices! It fits perfectly 1/10 1/8 Trucks, Buggies, Crawlers, Planes, ect. All processes from raw materials to production are environmentally friendly and green.
Ideal for 1/10 to 1/8 Scale On-Road, Trucks, 1/10 Nitro Touring, Airplane, Helicopter, Robot, etc.
FEATURES
• Heat Sink Fast Cooling Design
• Fully Waterproof IP67
• Robust Steel Gears and Shafts
• Super Strong Three Ball Bearings
• Long Lifespan Brushless Motor
• Programmable Digital Circuit
• Lightning-Quick Speed
• High-Voltage Compatible
• Splash and Dust Resistant
• Aluminum Single Arm Servo Horn
• High Precision Magnetic Angular Position Sensor
PRODUCT SPECIFICATIONS Programmable
Voltage 4.8V ~ 8.4V Direction CCW
Gear Material Strength Steel Temperature -15°C ~ +70°C
Pulse Width 500 ~ 2500 µSec Refresh Rate 1520 µS / 333Hz
Dimension 40*20*37.5 mm Motor Type Brushless
Bearing 3BB Dead Band 2 µSec
Net Weight 78 g Gear Spline 25T-ɸ5.92 mm
Case Material AL6061T6 Travel Angel 180 ± 10°
Wire TYU 300mm / 22AWG Wire Color Black | Black | Grey
Operating Speed Stall Torque
0.080 sec/60° @4.8V 12 kg·cm (167 oz·in) @4.8V
0.070 sec/60° @6.0V 16 kg·cm (222 oz·in) @6.0V
0.060 sec/60° @7.4V 19 kg·cm (264 oz·in) @7.4V
0.052 sec/60° @8.4V 23 kg·cm (320 oz·in) @8.4V
