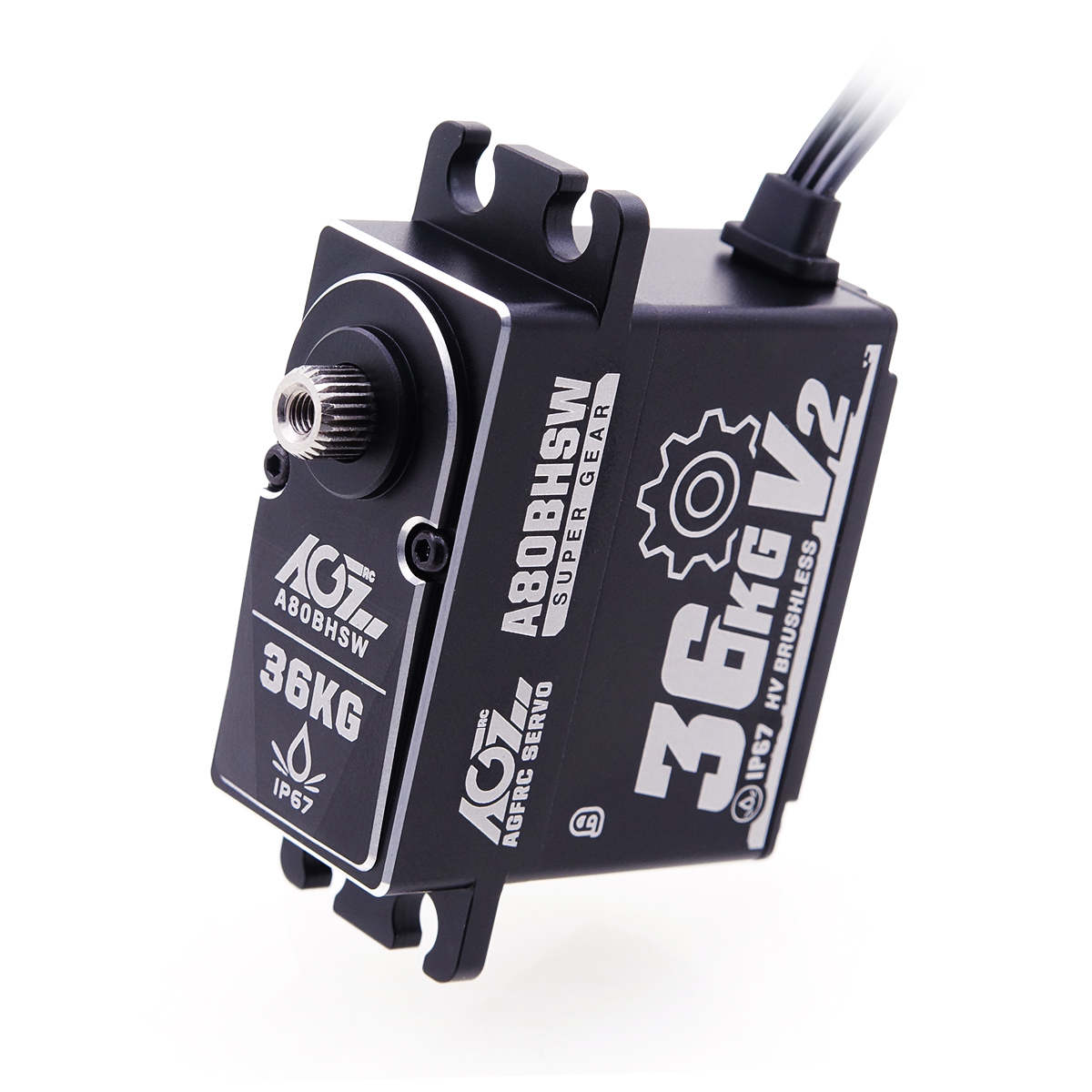

A80BHSW V2 Upgrade Structure 36KG High Torque 0.071S Hi-Speed Waterproof 1/10 Scale Digital Brushless Servo
Item Name:
A80BHSW V2
Weight:
81g
Voltage:
4.8-8.4V
Retail Price:
US$86.99/PC
Application:
RC Car, Truck, Boat, Airplane, Helicopter

The A80BHSW V2 is fully upgrade inside structure to make it much more stronger and reliable for 1/10 scale models. Updated with latest designed laser engraving pattern for a new look. Enhance pin shaft and upgrade gear material, smooth three ball bearings and high-quality long-life brushless motor which make it  trustworthy when you climping in the hill or throught the rock.


High voltage compatibility of up to 8.4V, not only with fast response speed, but also has a good heat dissipation effect. Effectively solve the problem of heating of the servo system under long-time work. High accuracy digital magnetic position encoding, which feature waterproof function up to IP67 grade. It can be used even in the environment of muddy roads, streams, breeze and drizzle. Even if it snows, you can take it and make a snowman with your model. If you prefer custom parameter programming, it can also meet your requirements. AGFRC always listens to the requirements and suggestions of the public and brings more high-quality products to everyone.


Feature

High Performance Digital Standard Servo

Fully Aluminum Housing and Structure

Enhanced Steel Gears and Pin Shaft

High Strength Three Ball Bearings

High Efficiency Bruhless Motor

Built-in Magnetic Sensor

Fully Waterproof IP67 Rated

USB Programmable Circuit

Ideal for 1/10, On Road, TRX6, Arrma Mojave EXB-Roller Desert Truck, Off Road, Monster Truck, Airplane, Helicopter, Robot and Engine etc.


Specification

A80BHSW V2

Operating Voltage: 4.8-8.4 V

Operating speed: 0.120sec/60° @ 4.8V

Operating speed: 0.110sec/60° @ 6.0V

Operating speed: 0.083sec/60° @ 7.4V

Operating speed: 0.071sec/60° @ 8.4V

Stall Torque: 23 kg-cm (319 oz-in) @ 4.8V

Stall Torque: 28 kg-cm (389 oz-in) @ 6.0V

Stall Torque: 33 kg-cm (458 oz-in) @ 7.4V

Stall Torque: 36 kg-cm (500 oz-in) @ 8.4V

Gear: Steel

Motor: BLS

Size: 40*20*37.2mm (1.57 x 0.78 x 1.46 in)

Weight: 81g

Connector Wire: TYU 300mm / 22AWG
