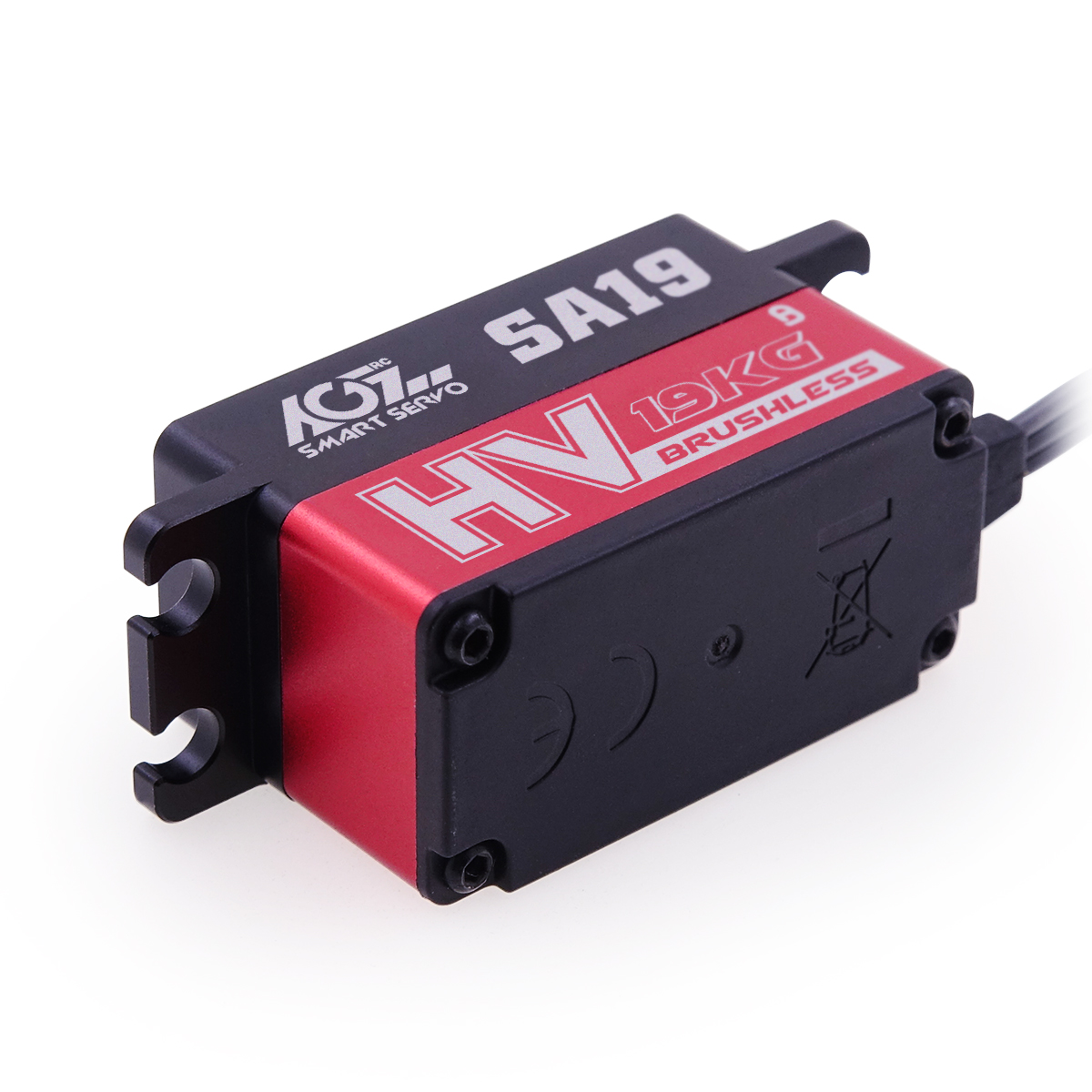

AGFRC SA19 SERVO Regular Mode Continuous Rotation Mode      PURCHASE LINK

AGFrc 2S low profile smart servo got a new member SA19, which allowed to change to the firmware for regular and winch servo usage. 0.073sec fast response and 19kg incredible torque make it a perfect match for those who demand the very best for your 1/10 touring car or off road application. The heat sink case design not only looks good but also allows for cooler and smoother operating temps. Take one to impress your friends.

Ideal for 1/10, 1/12 On Road, Off Road, Touring, Drifting, Airplanes, Boats, Robot etc.

FEATURES

• 2S Low Profile Smart Servo

• Aluminium CNC Case

• High Reliability Steel Gear

• Programmable Digital Circuit

• More Durable 2 Ball Bearings

• Good Stability Brushless Motor

• Magnetic Sensor Waterproof IP67

• Can be used as a Winch or Regular Servo

PRODUCT SPECIFICATIONS

   Voltage    4.8V ~ 8.4V    Direction    CCW

   Gear Material    Strength Steel    Temperature    -15°C ~ +70°C

   Pulse Width    500 ~ 2500 µSec    Refresh Rate    1520 µS / 333Hz

   Dimension    40.8*20.2*26.5 mm    Motor Type    Brushless

   Bearing    2BB    Dead Band    2 µSec

   Net Weight    51 g    Gear Spline    25T-ɸ5.92 mm

   Case Material    AL6061T6    Travel Angel    180 ± 10°

   Wire    TYU 180mm / 22AWG    Wire Color    Black | Black | Grey

Operating Speed     Stall Torque

0.110 sec/60° @4.8V     13 kg·cm (180 oz·in) @4.8V

0.095 sec/60° @6.0V     16 kg·cm (222 oz·in) @6.0V

0.083 sec/60° @7.4V     18 kg·cm (250 oz·in) @7.4V

0.073 sec/60° @8.4V     19 kg·cm (264 oz·in) @8.4V
