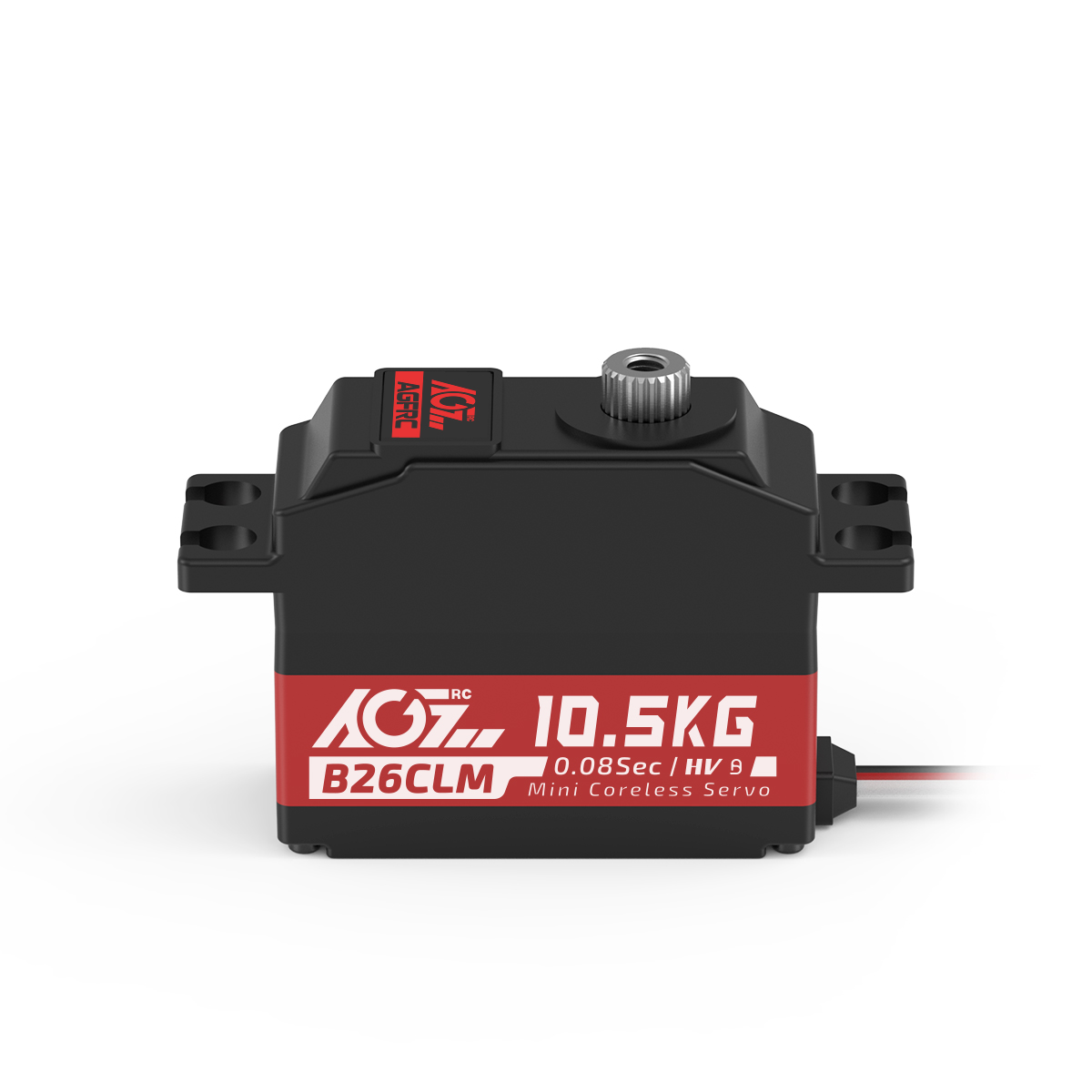

AGFRC B26CLM SERVO            PURCHASE LINK

B26CLM V2 is a high torque version in the B26 series servo. Strong internal composition structure of titanium Gear, coreless motor and dual ball bearing to make sure the smoother operation. It is a high torque low cost digital mini servo widely use for RC Car and RC Helicopter. Upgrade programmable feature allow user to parameter adjustment.

Ideal for RC Helicopter, Car, Airplane, Robot etc.

FEATURES

• High Performance Digital Servo

• High Precision Metal Gears

• High Quality Coreless Motor

• Medium Aluminum Case

• Dual Ball Bearings

PRODUCT SPECIFICATIONS

   Voltage    4.8V ~ 8.4V    Direction    CCW

   Gear Material    Titanium    Temperature    -15°C ~ +70°C

   Pulse Width    500 ~ 2500 µSec    Refresh Rate    1520 µS / 333Hz

   Dimension    36*15.2*29.7 mm    Motor Type    Coreless

   Bearing    2BB    Dead Band    2 µSec

   Net Weight    27.3 g    Gear Spline    25T-ɸ5.92 mm

   Case Material    AL+Plastic    Travel Angel    180° ± 10°

   Wire    JR 180mm / 26AWG    Wire Color    Black | Red | White

Operating Speed     Stall Torque

0.105 sec/60° @4.8V     7.0 kg·cm (97 oz·in) @4.8V

0.095 sec/60° @6.0V     8.5 kg·cm (118) @6.0V

0.085 sec/60° @7.4V     9.5 kg·cm (132 oz·in) @7.4V

0.080 sec/60° @8.4V     10.5 kg·cm (145 oz·in) @8.4V
