AGFRC SA18 SERVO Regular Mode Continuous Rotation Mode    PURCHASE LINK

AGFRC SA18 is digital progtammable servo, which feature waterproof function up to IP67 grade. Grooved surface design with good heat dissipation performance, the servo can meet the needs of use in different environments. SA18 has been manufactured with aluminum heat sink case, good stability coreless motor and double ball bearings, which makes the servo perfectly fits for rc cars/trucks/airplanes etc.

AGFRC always try the best to supply various servo for different needs, so why not try this special designed servo? It would not disappoint you.

FEATURES

• High Performance Digital Servo

• Aluminum Heat Sink Case

• Reliable Metal Gears

• Dual Ball Bearing

• High Precision Magnetic Sensor

• High Efficiency Coreless Motor

• Programmable Digital Circuit

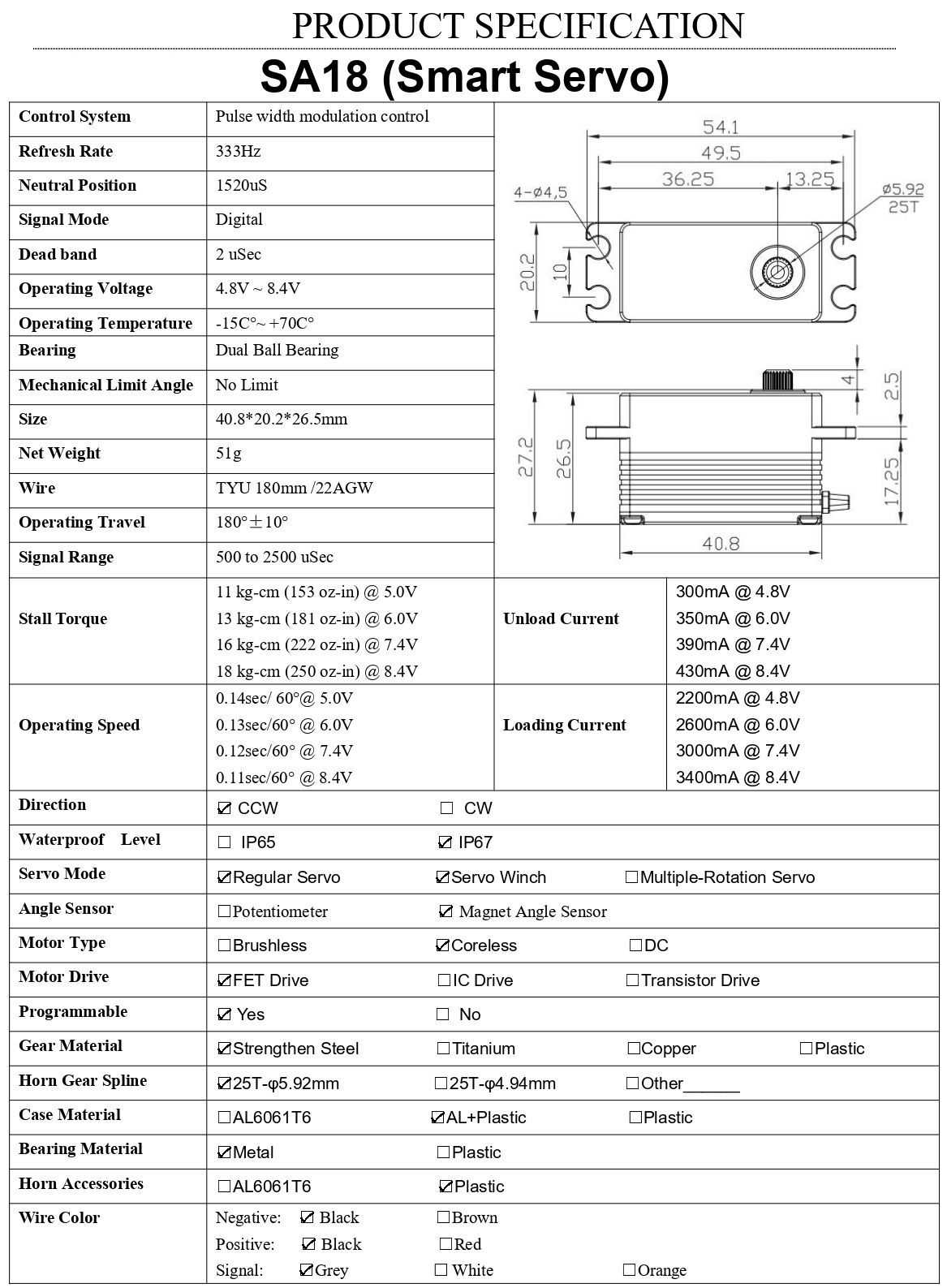

PRODUCT SPECIFICATIONS

   Voltage    4.8V ~ 8.4V    Direction    CCW

   Gear Material    Strength Steel    Temperature    -15°C ~ +70°C

   Pulse Width    500 ~ 2500 µSec    Refresh Rate    1520 µS / 333Hz

   Dimension    40.8*20.2*26.5 mm    Motor Type    Brushless

   Bearing    2BB    Dead Band    2 µSec

   Net Weight    55 g    Gear Spline    25T-ɸ5.92 mm

   Case Material    AL6061T6    Travel Angel    180 ± 10°

   Wire    TYU 180mm / 22AWG    Wire Color    Black | Black | Grey

Operating Speed     Stall Torque

0.140 sec/60° @4.8V     11 kg·cm (153 oz·in) @4.8V

0.130 sec/60° @6.0V     13 kg·cm (181 oz·in) @6.0V

0.120 sec/60° @7.4V     16 kg·cm (222 oz·in) @7.4V

0.110 sec/60° @8.4V     18 kg·cm (250 oz·in) @8.4V
