AGFRC A06CHR 8mm 0.052sec High Precision 3.0kg High Torque Coreless Motor Titanium Gear Micro Wing Servo For RC Glider
Item Name:
A06CHR
Weight:
7.0g
Voltage:
4.8-8.4V
Retail Price:
US$56.99/PC
Application:
Small Size Airplane, Glider, Sailplane, such as F3P, GLD Airplane etc.

AGFRC A06CHR is a brand new 8mm thickness mini size wing servo, full CNC aluminium case to provide the good heat dissipation conditions, featuring a digital programmable circuit high voltage compatible. Enhance the coreless motor, so that we can ensure to output the 0.052sec lightning speed & 3.0kg-cm high torque at 8.4V. Two different mounting tabs option (A06CHR and A06CLS V2), suitable for wing or fuselage mounting. High accuracy and 7g light weight which is perfect for small size aircraft and glider wings with limit space requirements.


Feature

Sturdy Metal Ball Bearing

Fully CNC Aluminium Casing

Super Durability Metal Gears

More Efficient Coreless Motor

High Accuracy 8mm Micro Wing Servo

Two Different Mounting Tabs Option

Parameter Programmable Available

Ideal for Small Size Airplane, Glider, Sailplane, such as F3P, GLD Airplane etc.


Specification

A06CHR

Operating Voltage: 4.8-8.4V

Operating speed: 0.075sec /60° @ 4.8V

Operating speed: 0.066sec /60° @ 6.0V

Operating speed: 0.058sec /60° @ 7.4V

Operating speed: 0.052sec /60° @ 8.4V

Stall Torque: 1.8 kg-cm (25 oz-in) @ 4.8V

Stall Torque: 2.2 kg-cm (30 oz-in) @ 6.0V

Stall Torque: 2.6 kg-cm (36 oz-in) @ 7.4V

Stall Torque: 3.0 kg-cm (41 oz-in) @ 8.4V

Gear: Titanium

Motor:Coreless

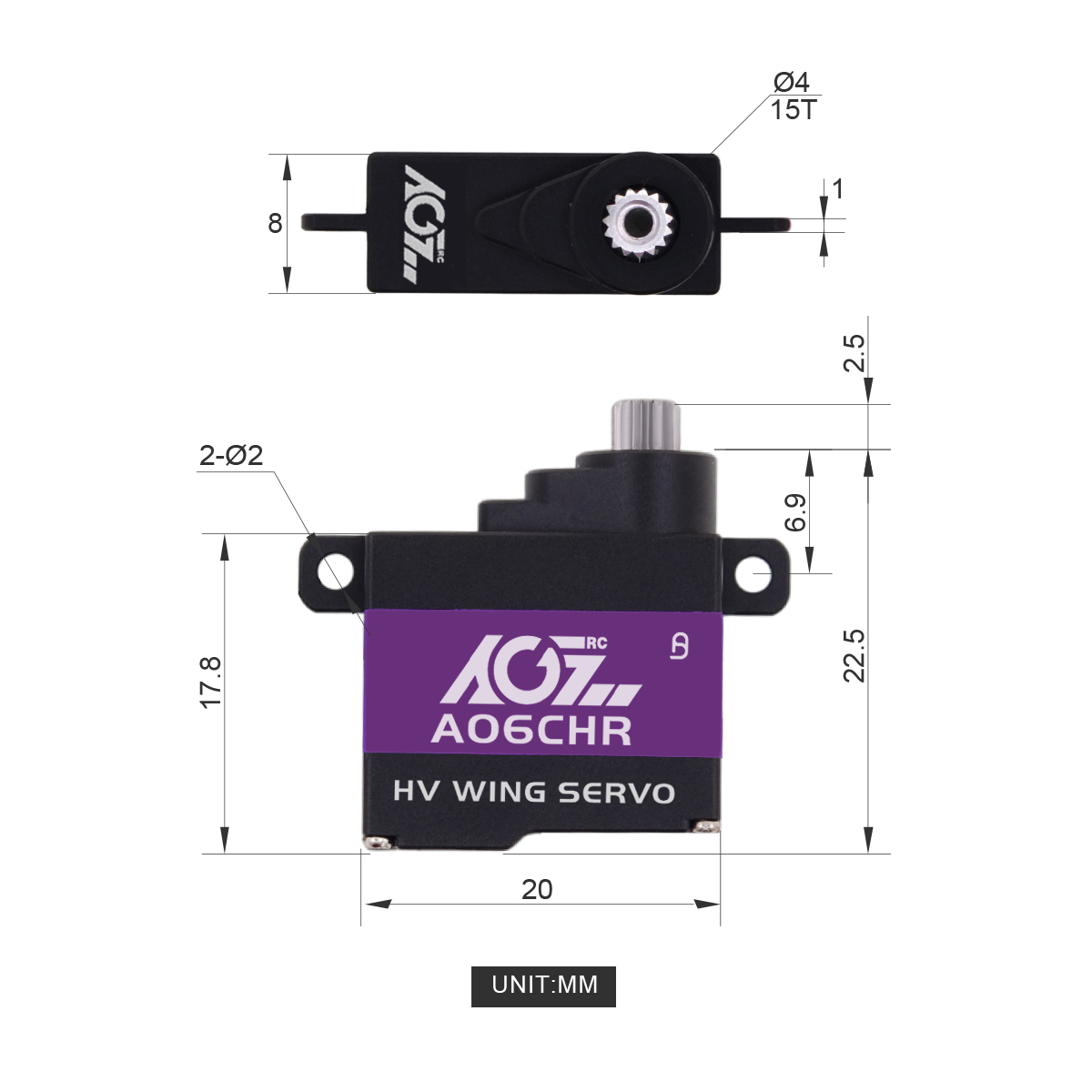

Size: 20*8*17.8mm (0.78 x 0.31 x 0.70 in)

Weight: 7.0 g

Connector Wire: JST(JR) 165mm / 28AWG
