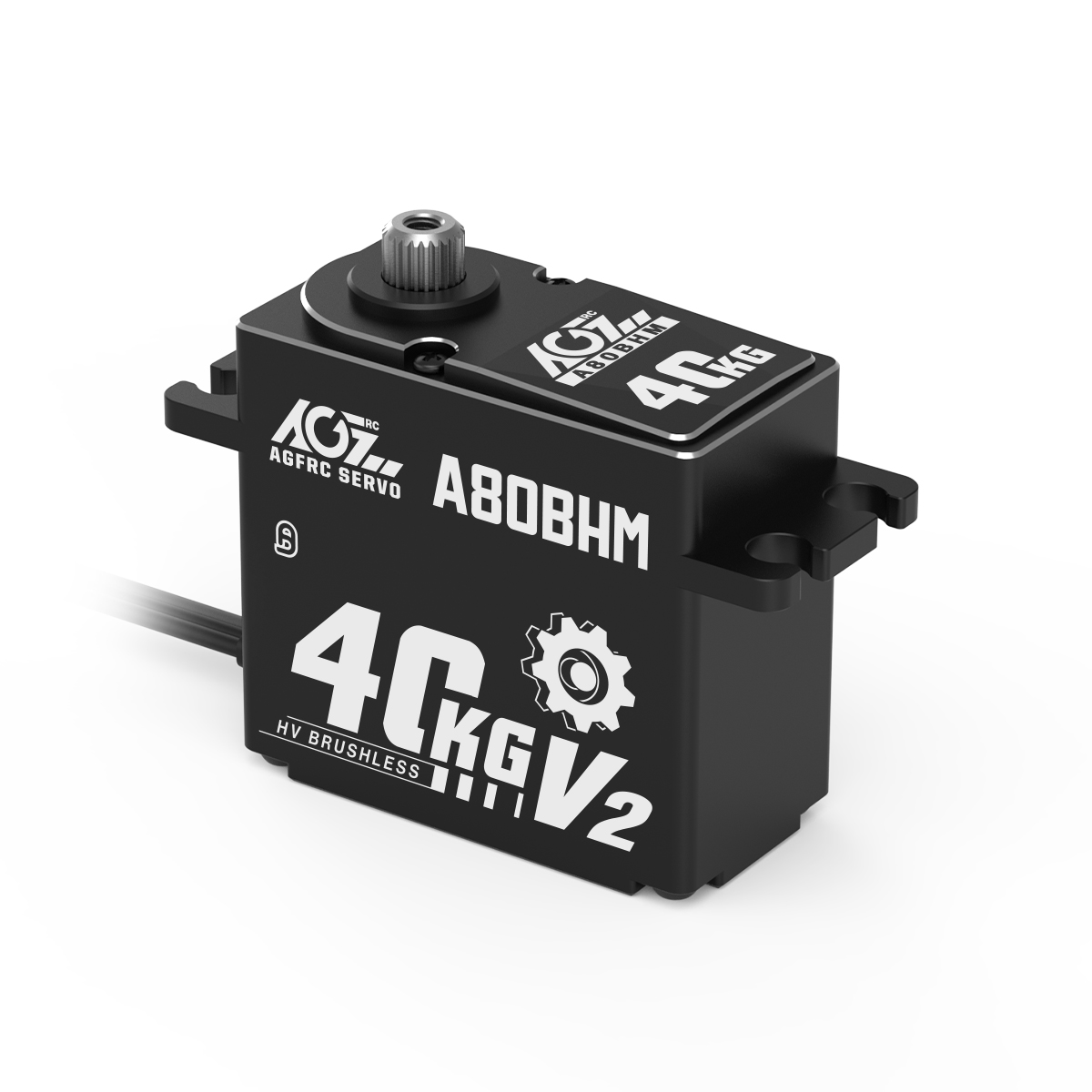

AGFRC A80BHMW V2 SERVO            PURCHASE LINK

The A80BHM V2 servo is the upgrade version of the A80BHM, adopt the Full CNC Aluminium case structure and three ball bearings. Upgraded to the steel gears and 2mm PIN shaft to ensures the smooth performance during using. It is also a programmable servo which you can change the parameter according to you need. This servo is highly recommend for 1/10 scale RC cars for steering or throttle. If you need the waterproof version, please go for the A80BHMW V2.

FEATURES

• Full CNC Aluminium Shell

• Long Lifespan Brushless Motor

• High Precision Steel Gears

• High Reliability Standard Digital Servo

• Programmable Via USB Programmer

PRODUCT SPECIFICATIONS

   Voltage    4.8V ~ 8.4V    Direction    CCW

   Gear Material    Steel    Temperature    -15°C ~ +70°C

   Pulse Width    500 ~ 2500 µSec    Refresh Rate    1520 µS / 333Hz

   Dimension    40*20*37.5 mm    Motor Type    Brushless

   Bearing    3BB    Dead Band    2 µSec

   Net Weight    79 g    Gear Spline    25T-ɸ5.92 mm

   Case Material    AL6061T6    Travel Angel    180 ± 10°

   Wire    TYU 300mm / 22AWG    Wire Color    Black | Black | Grey

Operating Speed Stall Torque

0.140 sec/60° @4.8V    27 kg·cm (375 oz·in) @4.8V

0.120 sec/60° @6.0V    31 kg·cm (430 oz·in) @6.0V

0.100 sec/60° @7.4V    36 kg·cm (500 oz·in) @7.4V

0.085 sec/60° @8.4V    40 kg·cm (556 oz·in) @8.4V
