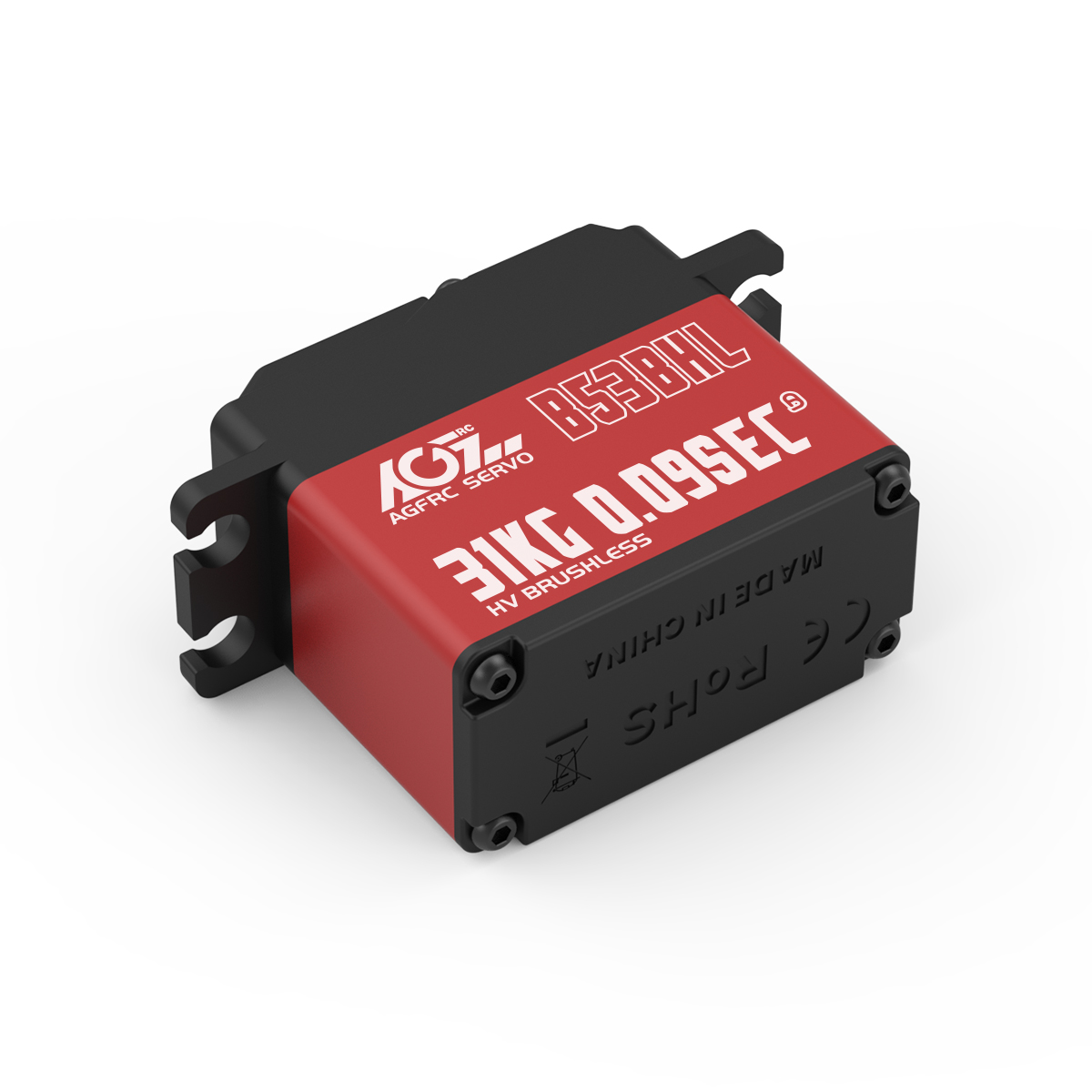

AGFRC B53BHL V2 SERVO            PURCHASE LINK

AGFRC B53BHL V2 is the upgrade version of the B53BHL servo. In order to meet the needs of more users, it is fully upgraded to the steel gear and the programmable function is added. Continued the 4.8V to 8.4V normal working voltage. If you need a budget servo with a speed of 0.090sec and a torque of 31kg-cm, then it will be a good choice for your cars or airplane.

FEATURES

• Plastic & Aluminium Case

• Programmable Digital Circuit

• High Precision Steel Gear

• Long Lifespan Brushless Motor

• High Strength Dual Ball Bearings

• Potentiometer Angle Sensor

PRODUCT SPECIFICATIONS

   Voltage    4.8V ~ 8.4V    Direction    CCW

   Gear Material    Strength Steel    Temperature    -15°C ~ +70°C

   Pulse Width    500 ~ 2500 µSec    Refresh Rate    1520 µS / 333Hz

   Dimension    40*20*37.8 mm    Motor Type    Brushless

   Bearing    2BB    Dead Band    2 µSec

   Net Weight    69.5 g    Gear Spline    25T-ɸ5.92 mm

   Case Material    AL+Plastic    Travel Angel    180° ± 10°

   Wire    JR 300mm / 22AWG    Wire Color    Black | Red | White

Operating Speed     Stall Torque

0.150 sec/60° @4.8V     21.0 kg·cm (292 oz·in) @4.8V

0.125 sec/60° @6.0V     23.0 kg·cm (320 oz·in) @6.0V

0.105 sec/60° @7.4V     28.0 kg·cm (389 oz·in) @7.4V

0.090 sec/60° @8.4V     31.0 kg·cm (430 oz·in) @8.4V
