AGFRC B11DLS SERVO            PURCHASE LINK

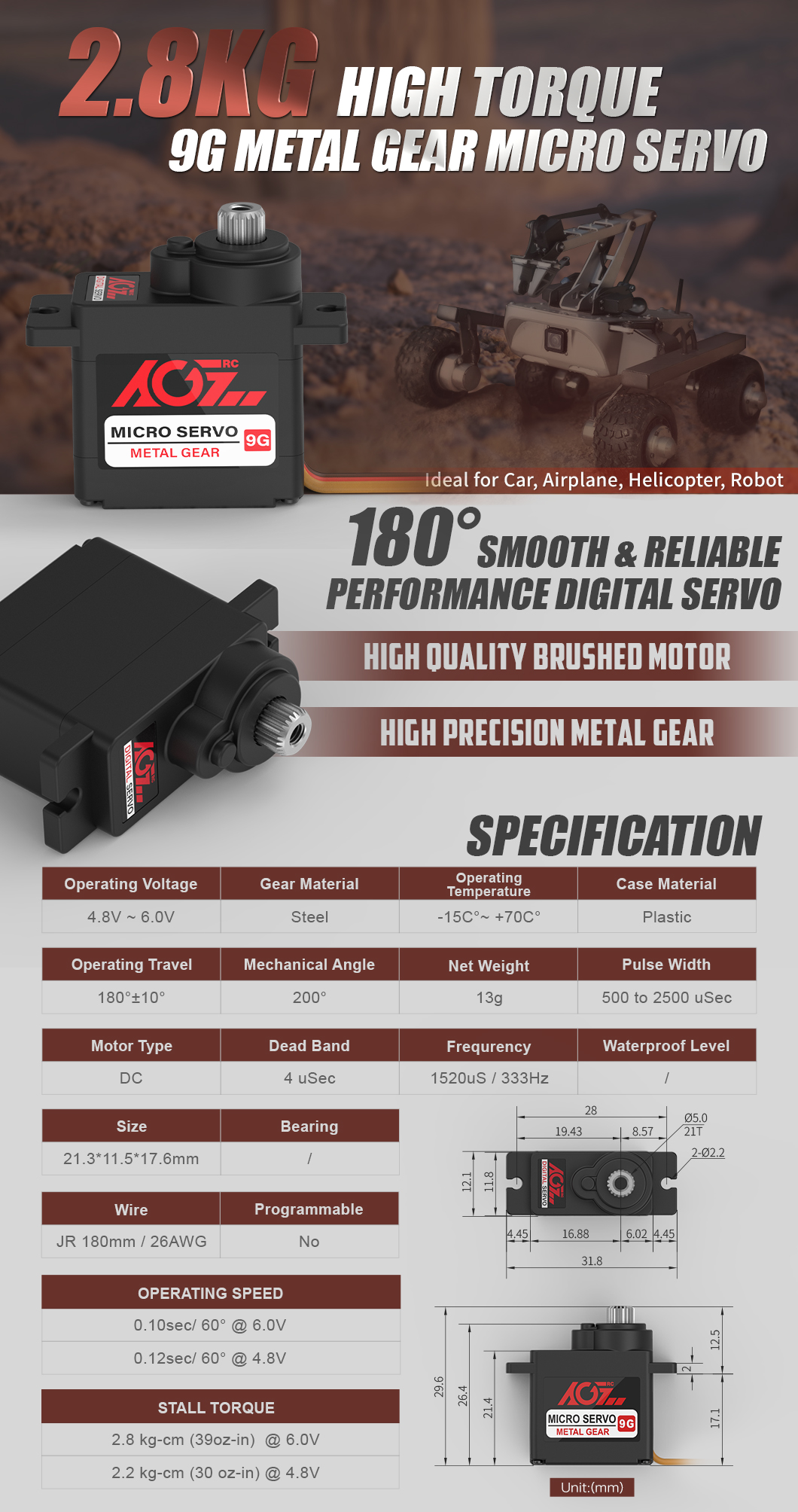

AGFRC B11DLS 21T Micro High Torque Servo, with brushed motor, single bearing and steel gear to keep the smooth operation. It is a high performance digital circuit micro servo, it can reach 2.8 kg-cm high torque and a 0.10sec speed at 6.0V.

Ideal for Car, Airplane, Helicopter, Robot

FEATURES

• High Performance Digital Servo

• Upgrade Reliable Steel Gear

• High Quality Brushed Motor

PRODUCT SPECIFICATIONS

   Voltage    4.8V ~ 6.0V    Direction    CCW

   Gear Material    Steel | Copper    Temperature    -15°C ~ +70°C

   Pulse Width    500 ~ 2500 µSec    Refresh Rate    1520 µS / 333Hz

   Dimension    23*12.1*23.8 mm    Motor Type    DC

   Bearing    BB    Dead Band    4 µSec

   Net Weight    13 g    Gear Spline    21T-ɸ4.94 mm

   Case Material    Plastic    Travel Angel    180° ± 10°

   Wire    JR 180mm / 26AWG    Wire Color    Brown | Red | Orange

Operating Speed     Stall Torque

0.120 sec/60° @4.8V     2.2 kg·cm (30 oz·in) @4.8V

0.100 sec/60° @6.0V     2.8 kg·cm (39 oz·in) @6.0V
