Product Description

The B45CHMZ is a low profile servo. We still use 8.4V strong voltage drive for it, the maximum torque can reach 14KG and the fast speed of 0.086Sec. Its shell is composed of plastic and CNC shell, and the shell is gray and highly recognizable. In the internal structure of the servo, the high-quality coreless motor can work closely with the high-precision titanium gear and operate in an orderly manner.

Feature

High Performance Low Profile Digital Servo

High Precision Titanium Gear

Smooth Dual Ball Bearing

Aluminium Middle Case

Ideal for Car, Touring Car, Boat, Aircraft, Robot etc.

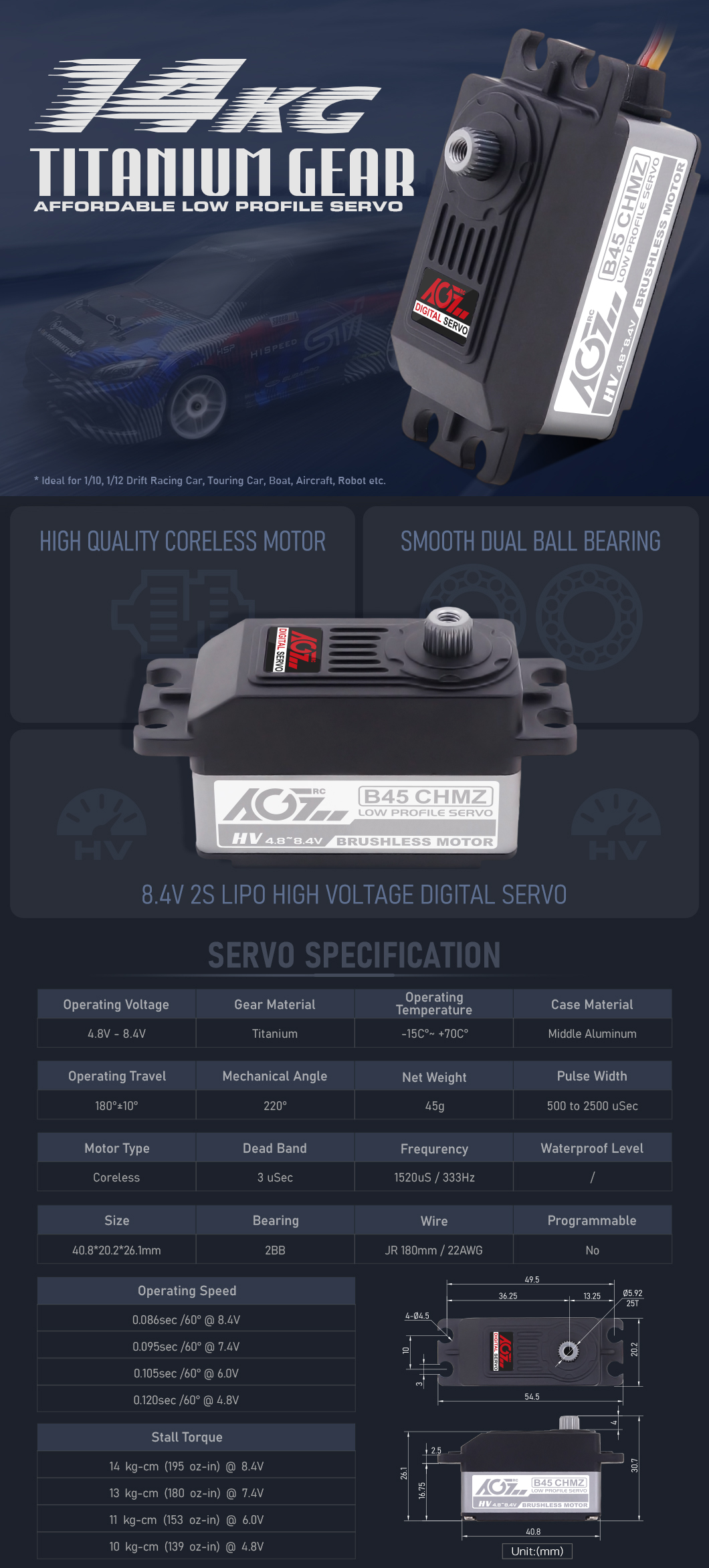

Specification

B45CHMZ

Operating Voltage: 4.8-8.4 V

Operating speed: 0.105sec/60°@ 6.0V

Operating speed: 0.095sec/60°@ 7.4V

Stall Torque: 11 kg.cm (153 oz-in ) @ 6.0V

Stall Torque: 13 kg.cm (180 oz-in ) @ 7.4V

Gear: Titanium

Motor: Coreless

Size: 40.8*20.2*26.1mm

Weight: 45g

Connector Wire: JR 180 mm / 22AWG
