AGFRC A20BHM SERVO        PURCHASE LINK

AGFRC A20BHM is the 8.4V high voltage compatible performance digital mini servo, also the first launch brushless motor 12mm thickness RC servo. It is made in a robust CNC aluminum case with high-accuracy metal gears, making it particularly ideal for RC cars and other applications.

For robotics, automation, CNC machinery, and advanced hobby projects.

FEATURES

• High Precision Metal Gears

• Fully CNC Aluminium Case

• Long Performance Life Brushless Motor

• Digital Programmable 25T Mini RC Servo

• Good Smoothness Double Ball Bearings

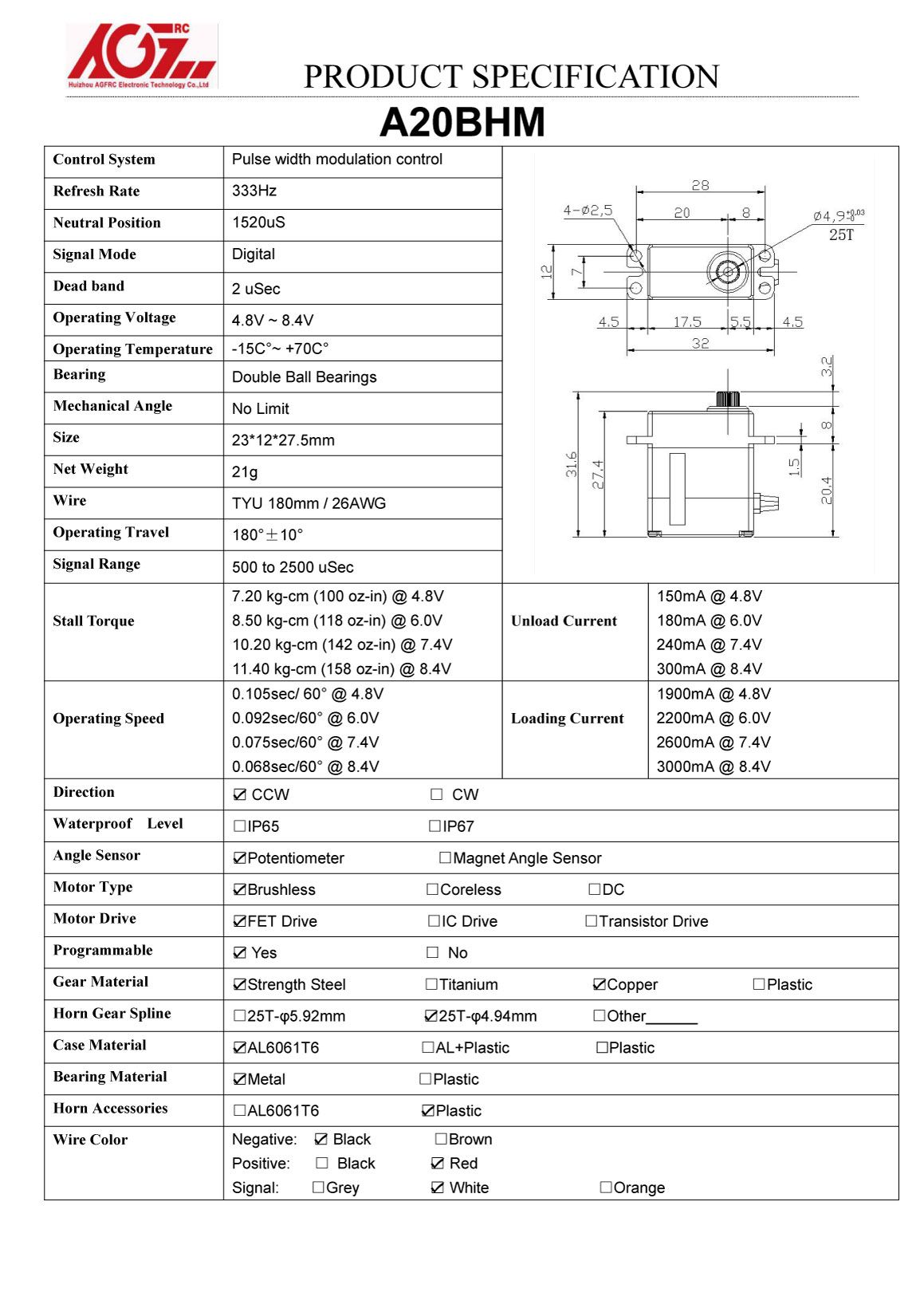

PRODUCT SPECIFICATIONS

Voltage4.8V ~ 8.4V        DirectionCCW

Gear MaterialStrength Steel        Temperature-15°C ~ +70°C

Pulse Width500 ~ 2500 µSec        Refresh Rate1520 µS / 333Hz

Dimension23*12*27.5 mm        Motor TypeBrushless

Bearing2BB        Dead Band2 µSec

Net Weight21.0 g        Gear Spline25T-ɸ4.94 mm

Case MaterialAL6061T6        Travel Angle180 ± 10°

WireTYU 180mm / 26AWG        Wire ColorBlack | Red | White

Operating Speed        Stall Torque

0.105 sec/60° @4.8V        7.2 kg·cm (100 oz·in) @4.8V

0.092 sec/60° @6.0V        8.5 kg·cm (118 oz·in) @6.0V

0.075 sec/60° @7.4V        10.2 kg·cm (142 oz·in) @7.4V

0.068 sec/60° @8.4V        11.4 kg·cm (158 oz·in) @8.4V
