Product Description

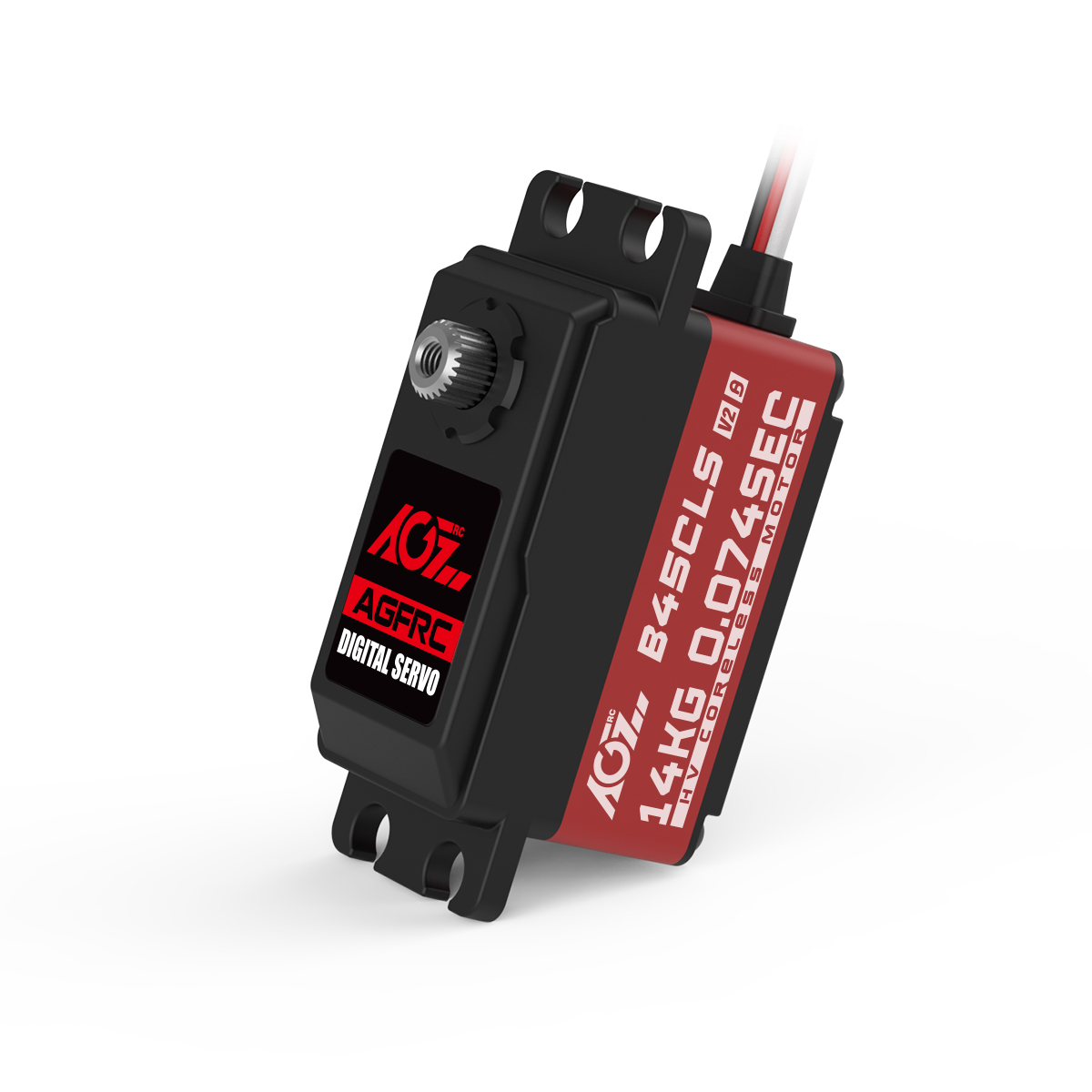

The high performance low profile digital servo B45CLS is a budget practical servo. It is composed of dust-proof and splash-proof aluminum and plastic shell, with strong sealing and low noise. The internal structure of the servo is designed with strong steel gears and high quality coreless motor, which closely fits the work of the silky dual ball bearings. It is not only thin and light, but it can exert reliable power, and the maximum torque can reach 14 kg-cm (195 oz-in) @ 8.4V. It is a good choice for 1/10 1/12 on road, touring car, drift car, etc.

Feature

High Performance Low Profile Digital Servo

High Precision Steel Gear

High Quality Coreless Motor

Smooth Dual Ball Bearing

Aluminium Middle Case

Parameter Programmable

Ideal for 1/10, 1/12 On Road, Touring ,Boat, Airplane etc.

Specification

B45CLS V2

Operating Voltage: 4.8-8.4 V

Operating Speed: 0.093sec/60° @ 6.0V

Operating Speed: 0.082sec/60° @ 7.4V

Operating Speed: 0.074sec/60° @ 8.4V

Stall Torque: 12 kg-cm (167 oz-in) @ 6.0V

Stall Torque: 13 kg-cm (180 oz-in) @ 7.4V

Stall Torque: 14 kg-cm (195 oz-in) @ 8.4V

Gear: Steel

Motor: Coreless

Size: 40.8*20.2*26.1mm (1.60 x 0.79 x 1.02 in)

Weight: 48g

Connector Wire: JR 180 mm / 22AWG
