AGFRC C05CLS SERVO            PURCHASE LINK

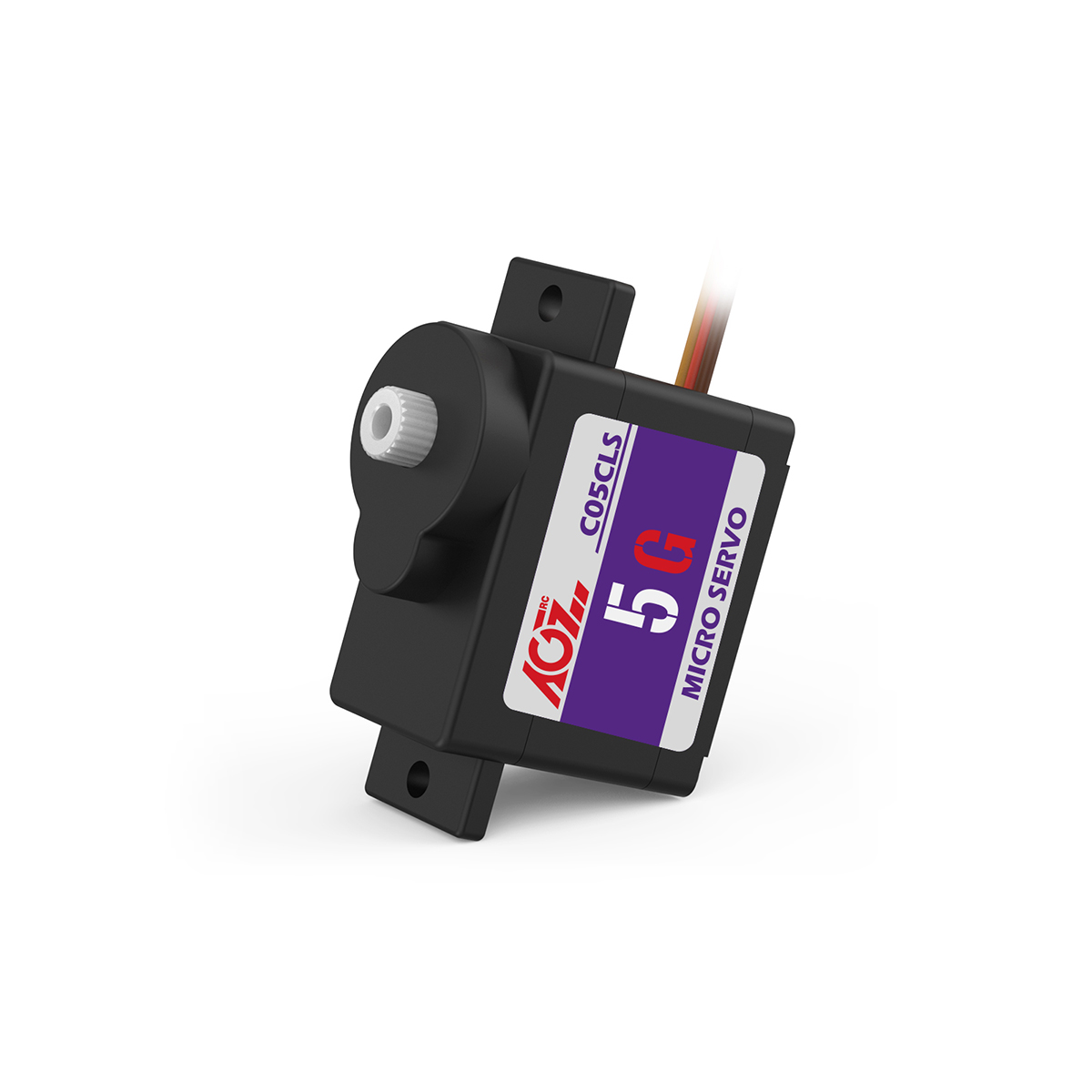

AGFRC C05CLS is a 5g 24T digital micro nano servo, it is the ultra large torque servo among the C0XCLS series, it can reach 1kg large torque and 0.075sec hi-speed at 6.0V. it also feature with coreless motor and plastic gear like other C0XCLS servos, has 120 degree max travel angle. Ideal for 1:35 Scale RC Cars and planes application which asked a micro servo in a high torque.

Ideal for Electric Fixed-wing Small 3D Machine, airplane, helicopter, car and boat

FEATURES

• High Performance Digital Servo

• High Precision Plastic Gears

• High Quality Coreless Motor

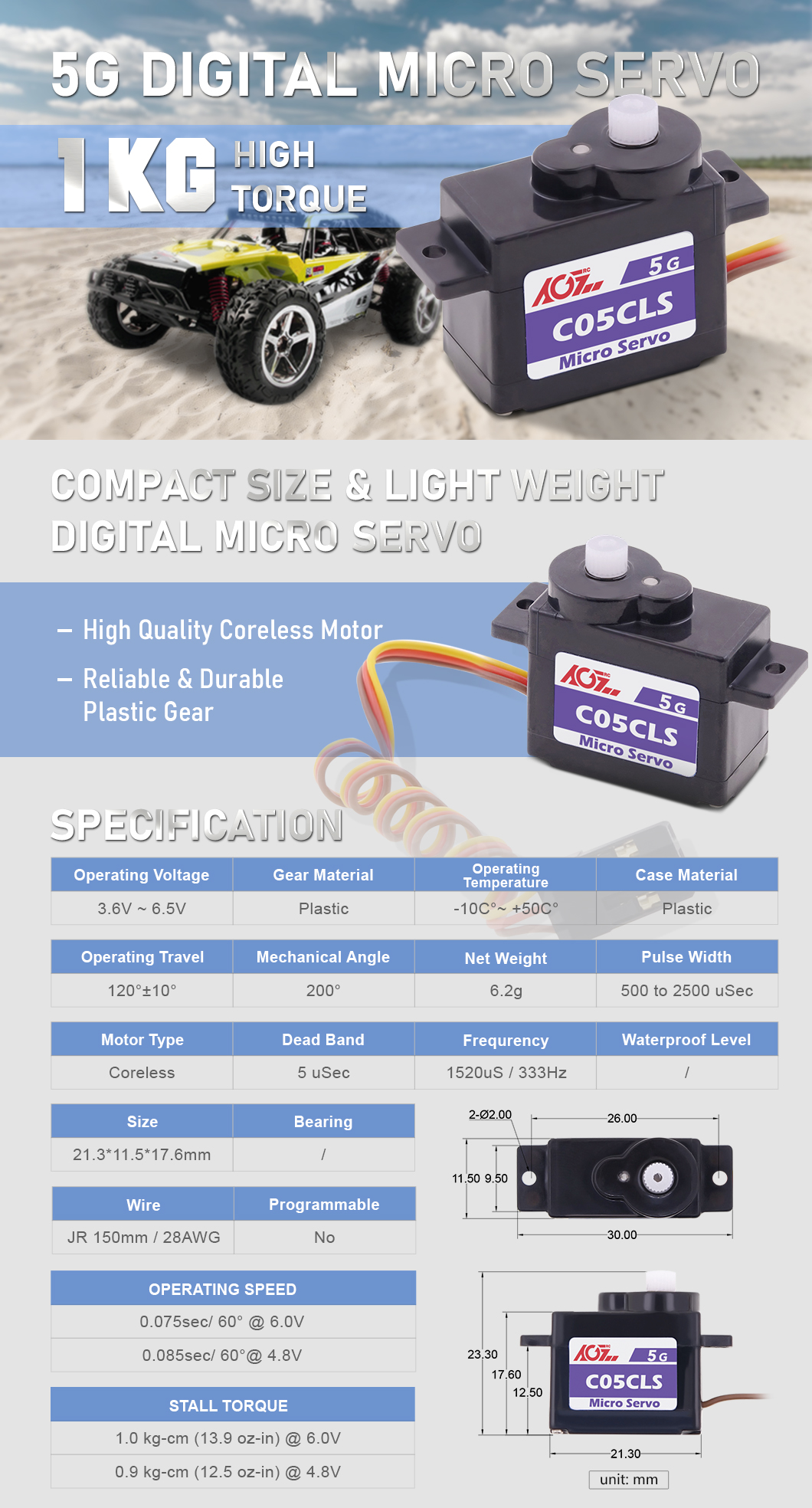

PRODUCT SPECIFICATIONS

   Voltage    3.6V ~ 6.5V    Direction    CCW

   Gear Material    Plastic    Temperature    -10°C ~ +50°C

   Pulse Width    900 ~ 2100 µSec    Refresh Rate    1520 µS / 333Hz

   Dimension    21.3*11.5*17.6 mm    Motor Type    Coreless

   Bearing    - -    Dead Band    5 µSec

   Net Weight    6.2 g    Gear Spline    24T-ɸ3.92 mm

   Case Material    Plastic    Travel Angel    120 ± 10°

   Wire    JST 150mm / 28AWG    Wire Color    Brown | Red | Orange

Operating Speed     Stall Torque

0.085 sec/60° @4.8V     0.9 kg·cm (12.5 oz·in) @4.8V

0.075 sec/60° @6.0V     1.0k g·cm (13.9 oz·in) @6.0V
