AGFRC 2026 Special Edition Servo

The 2026 special edition servo promotion spree has come to an end, but 2026 is still ongoing...The 2026 special edition servos are still waiting for you to take them away.

Designed for those who demand both precision and endurance, this servo brings a new level of performance to your builds. Whether you're engineering a competitive robot, a high-speed RC model, or an industrial automation project, the Horse Edition delivers torque you can trust and control you can feel. Each servo is equipped with a unique code. Let's take a look at what your lucky number is.

Each servo is equipped with a unique code. Let's take a look at what your lucky number is.

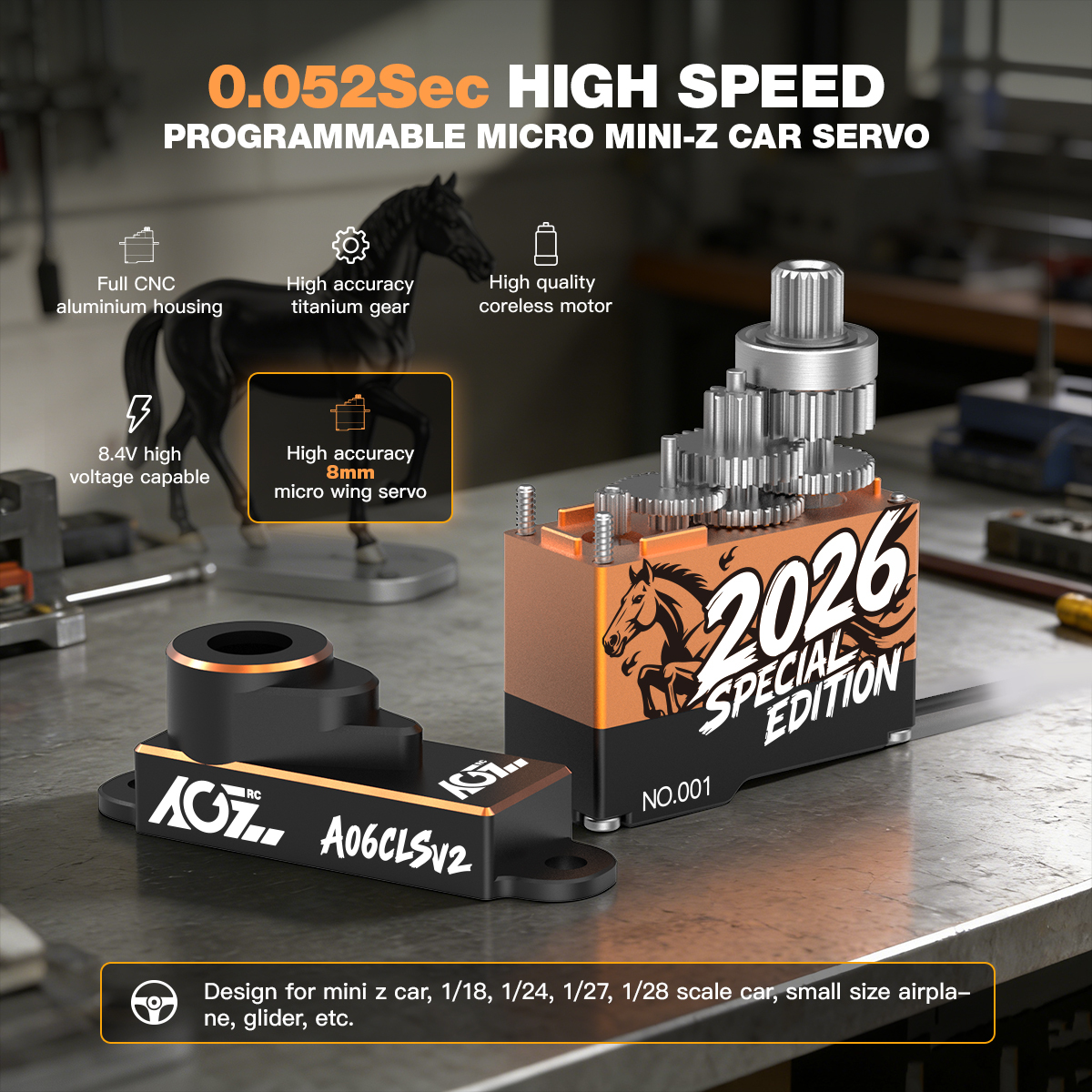

Case Material

AL6061T6

Gear Material

Titanium

Motor Type

Coreless

Operating Angle

180° ± 10°

Horn Gear Spline

20T-ɸ4.0 mm

Dimension

20*8*17.8mm

Net Weight

7 g(0.25 oz)

Operation Speed

0.075 sec/60° @4.8V

0.066 sec/60° @6.0V

0.058 sec/60° @7.4V

0.052 sec/60° @8.4V

Operation Torque

1.8 kg·cm (25 oz·in) @4.8V

2.2 kg·cm (30 oz·in) @6.0V

2.6 kg·cm (36 oz·in) @7.4V

3.0 kg·cm (41 oz·in) @8.4V

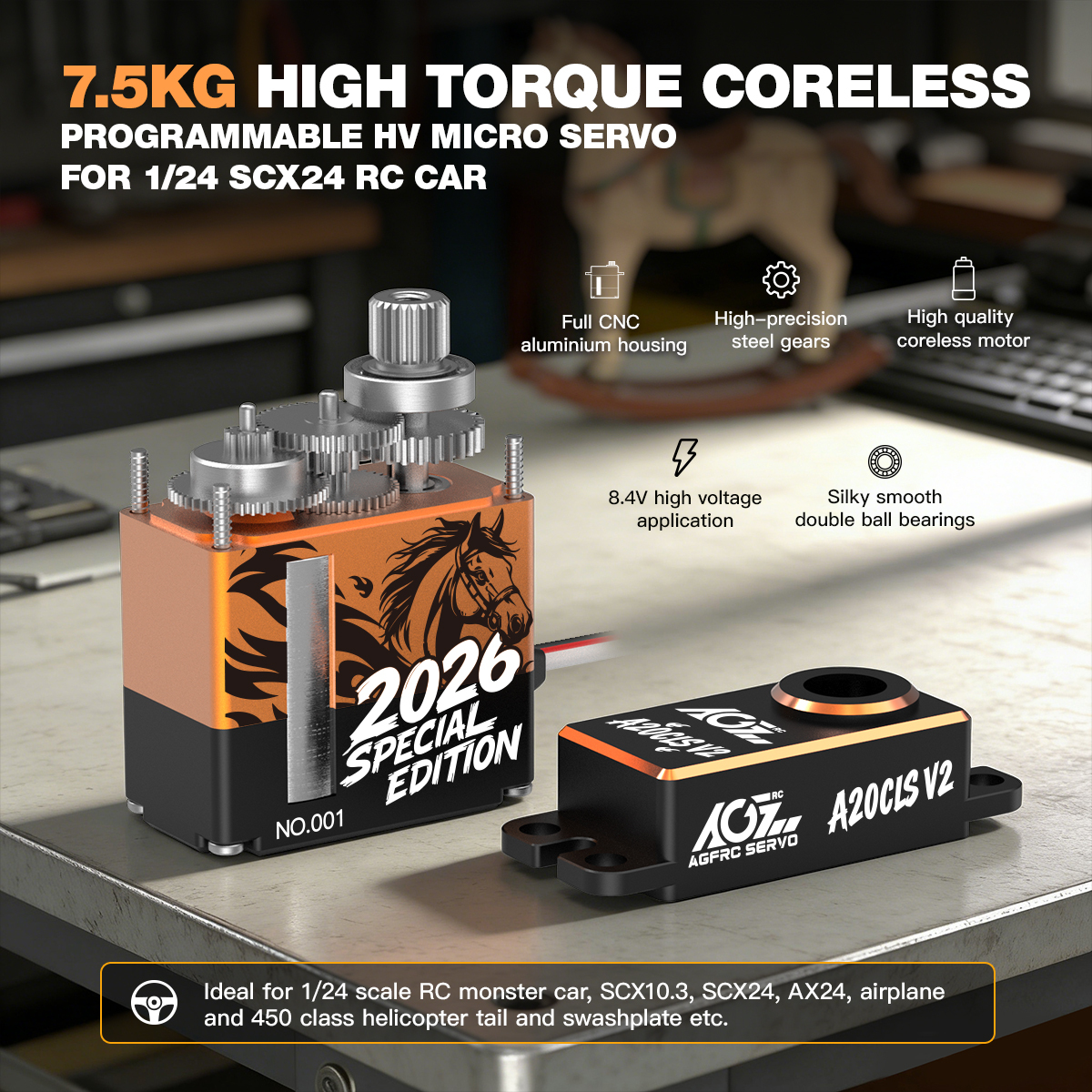

Case Material

AL6061T6

Gear Material

Strength Steel

Motor Type

Coreless

Operating Angle

180° ± 10°

Horn Gear Spline

25T-ɸ4.94 mm

Dimension

23*12*27.5mm

Net Weight

21 g(0.74 oz)

Operation Speed

0.130 sec/60° @4.8V

0.110 sec/60° @6.0V

0.090 sec/60° @7.4V

0.080 sec/60° @8.4V

Operation Torque

5.0 kg·cm (70 oz·in) @4.8V

5.8 kg·cm (80 oz·in) @6.0V

6.8 kg·cm (95 oz·in) @7.4V

7.5 kg·cm (104 oz·in) @8.4V

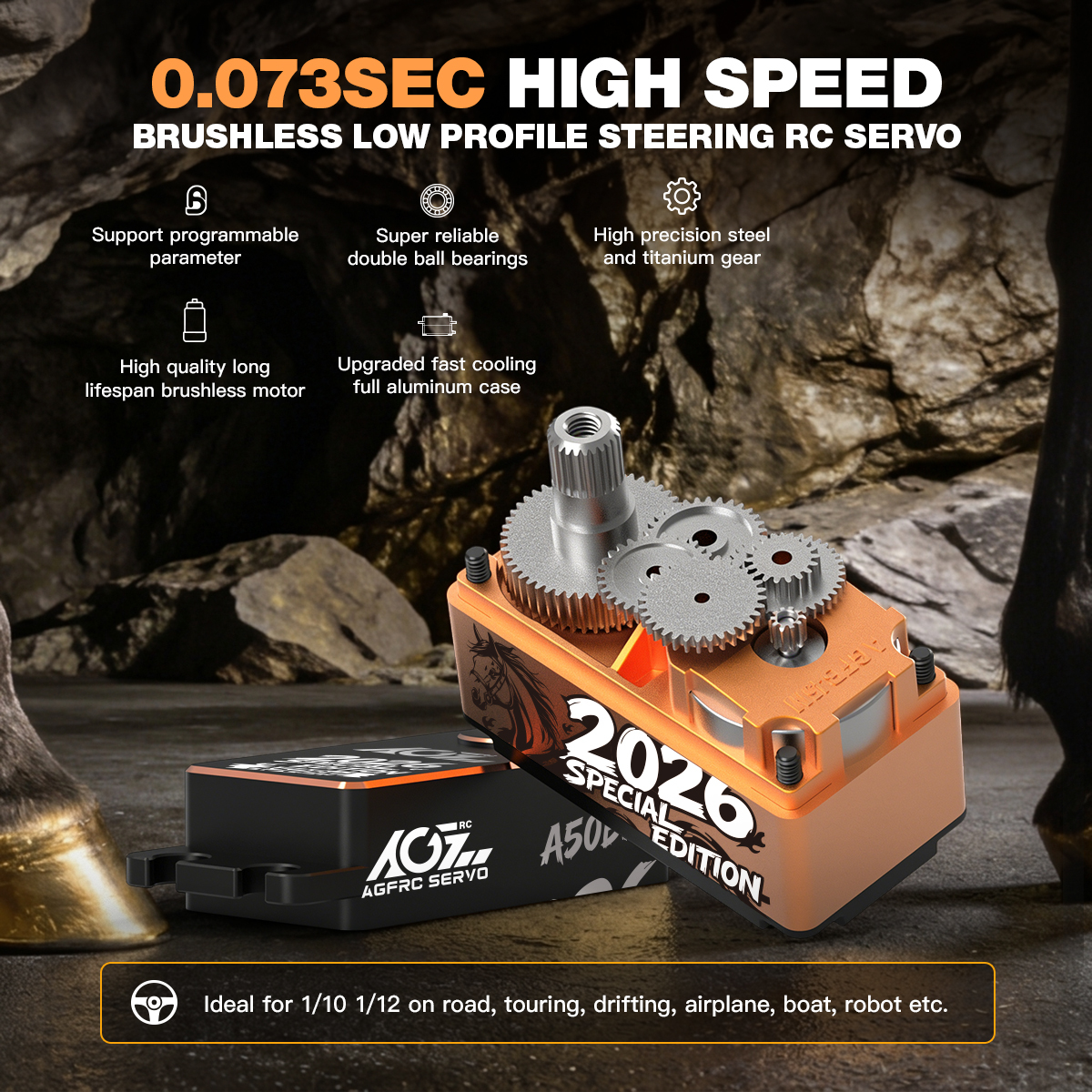

Case Material

AL6061T6

Gear Material

Strength Steel

Motor Type

Brushless

Operating Angle

180° ± 10°

Horn Gear Spline

25T-ɸ5.92 mm

Dimension

40.8*20.2*26.5mm

Net Weight

51 g(1.80 oz)

Operation Speed

0.110 sec/60° @4.8V

0.095 sec/60° @6.0V

0.083 sec/60° @7.4V

0.073 sec/60° @8.4V

Operation Torque

13.0 kg·cm (180 oz·in) @4.8V

16.0 kg·cm (222 oz·in) @6.0V

18.0 kg·cm (250 oz·in) @7.4V

19.0 kg·cm (264 oz·in) @8.4V

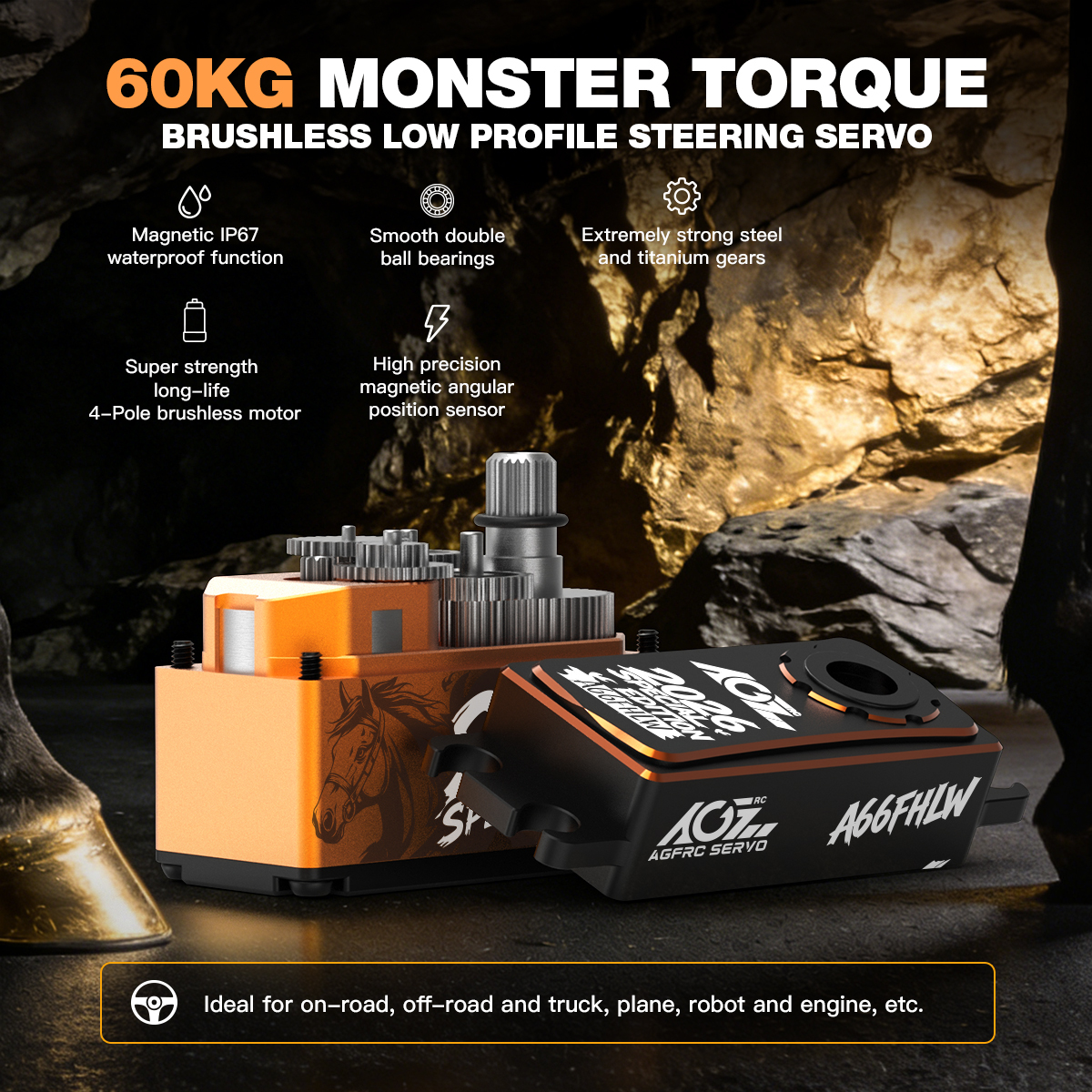

Case Material

AL6061T6

Gear Material

Strength Steel+Titanium

Motor Type

4-Pole Brushless

Operating Angle

180° ± 10°

Horn Gear Spline

25T-ɸ5.92 mm

Dimension

40.8*20.2*29.2mm

Net Weight

75 g(2.65 oz)

Operation Speed

0.145 sec/60° @4.8V

0.132 sec/60° @6.0V

0.115 sec/60° @7.4V

0.100 sec/60° @8.4V

Operation Torque

41.0 kg·cm (569 oz·in) @4.8V

46.0 kg·cm (639 oz·in) @6.0V

53.0 kg·cm (736 oz·in) @7.4V

60.0 kg·cm (834 oz·in) @8.4V

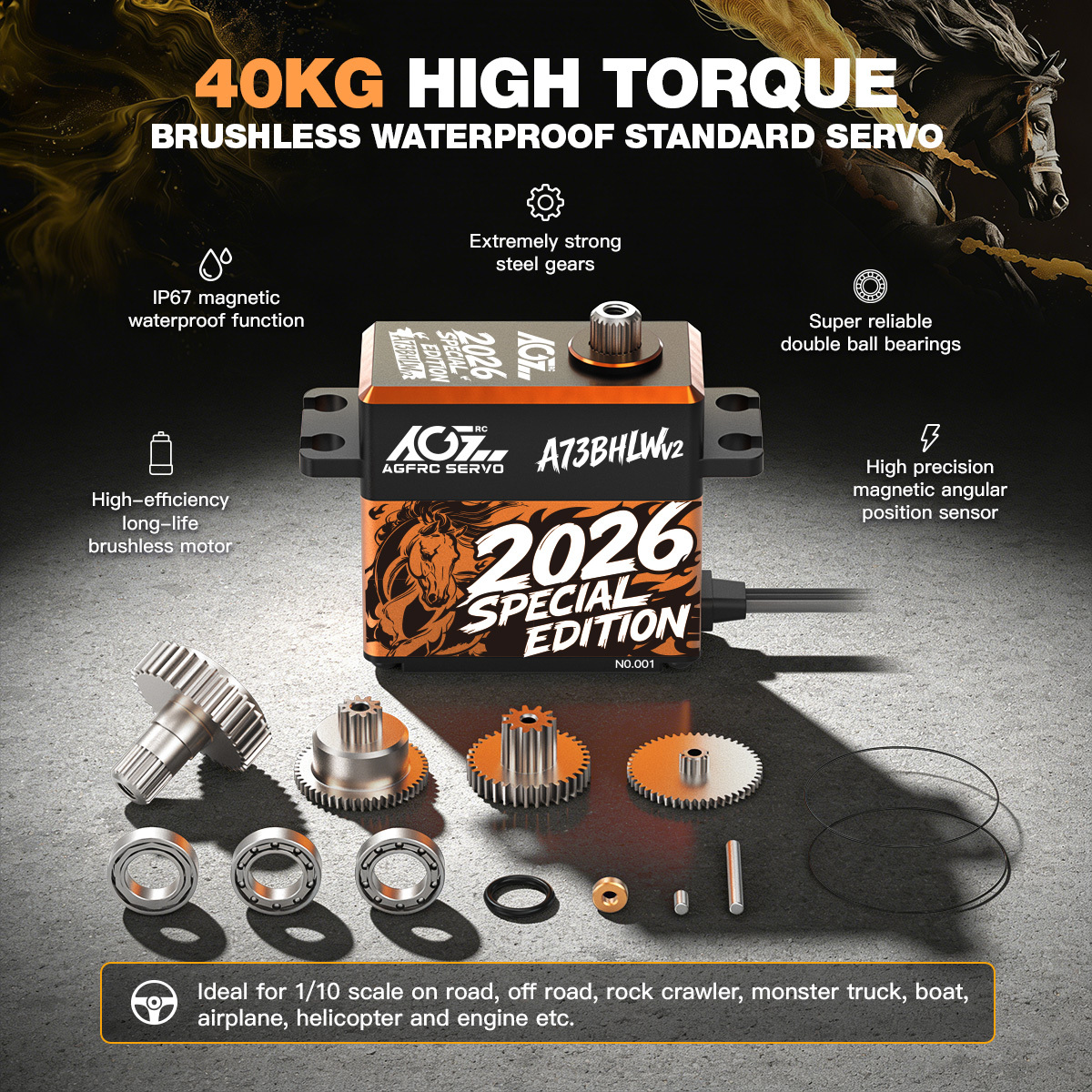

Case Material

AL6061T6

Gear Material

Strength Steel

Motor Type

Brushless

Operating Angle

180° ± 10°

Horn Gear Spline

25T-ɸ5.92 mm

Dimension

40*20*37.5mm

Net Weight

73 g(2.57 oz)

Operation Speed

0.145 sec/60° @4.8V

0.123 sec/60° @6.0V

0.110 sec/60° @7.4V

0.100 sec/60° @8.4V

Operation Torque

25.0 kg·cm (347 oz·in) @4.8V

29.0 kg·cm (403 oz·in) @6.0V

35.0 kg·cm (486 oz·in) @7.4V

40.0 kg·cm (556 oz·in) @8.4V

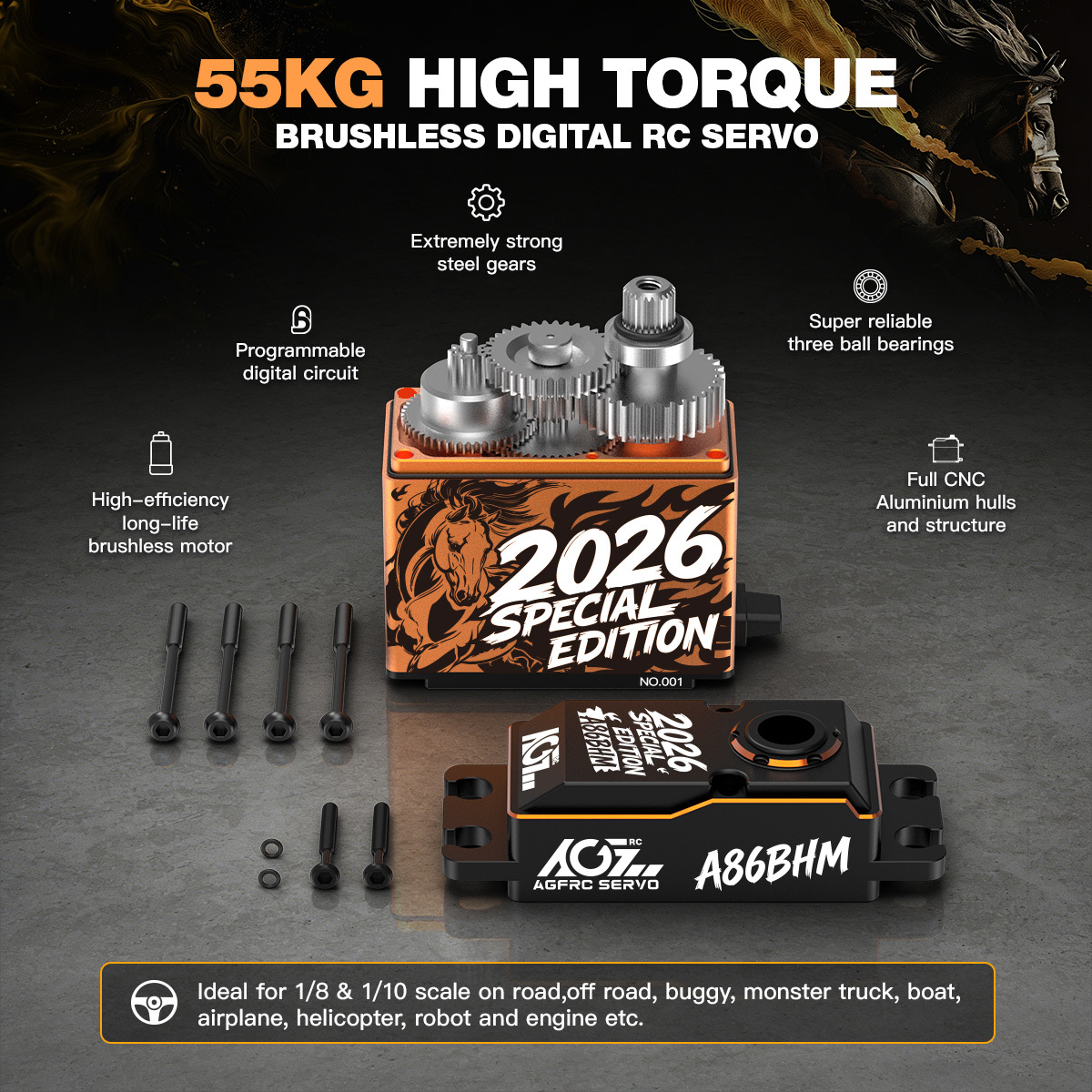

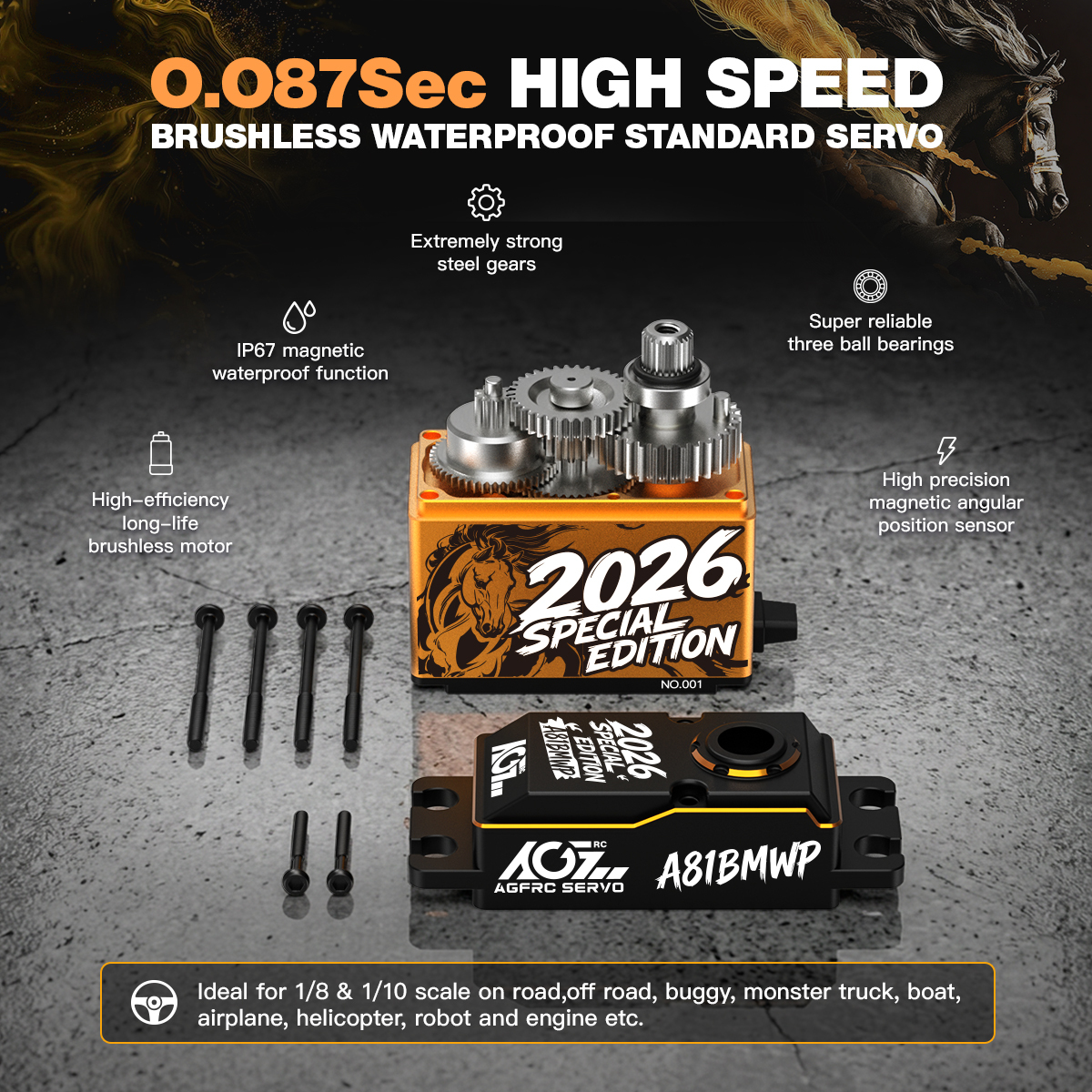

Case Material

AL6061T6

Gear Material

Strength Steel

Motor Type

Brushless

Operating Angle

180° ± 10°

Horn Gear Spline

25T-ɸ5.92 mm

Dimension

40*20*37.5mm

Net Weight

83 g(2.93 oz)

Operation Speed

0.145 sec/60° @4.8V

0.125 sec/60° @6.0V

0.100 sec/60° @7.4V

0.087 sec/60° @8.4V

Operation Torque

32.0 kg·cm (444 oz·in) @4.8V

39.0 kg·cm (542 oz·in) @6.0V

48.0 kg·cm (667 oz·in) @7.4V

55.0 kg·cm (764 oz·in) @8.4V

Case Material

AL6061T6

Gear Material

Strength Steel

Motor Type

Brushless

Operating Angle

180° ± 10°

Horn Gear Spline

25T-ɸ5.92 mm

Dimension

40*20*41.5mm

Net Weight

88.5 g(3.12 oz)

Operation Speed

0.175 sec/60° @4.8V

0.142 sec/60° @6.0V

0.125 sec/60° @7.4V

0.110 sec/60° @8.4V

Operation Torque

35.0 kg·cm (486 oz·in) @4.8V

40.0 kg·cm (556 oz·in) @6.0V

49.0 kg·cm (681 oz·in) @7.4V

55.0 kg·cm (764 oz·in) @8.4V

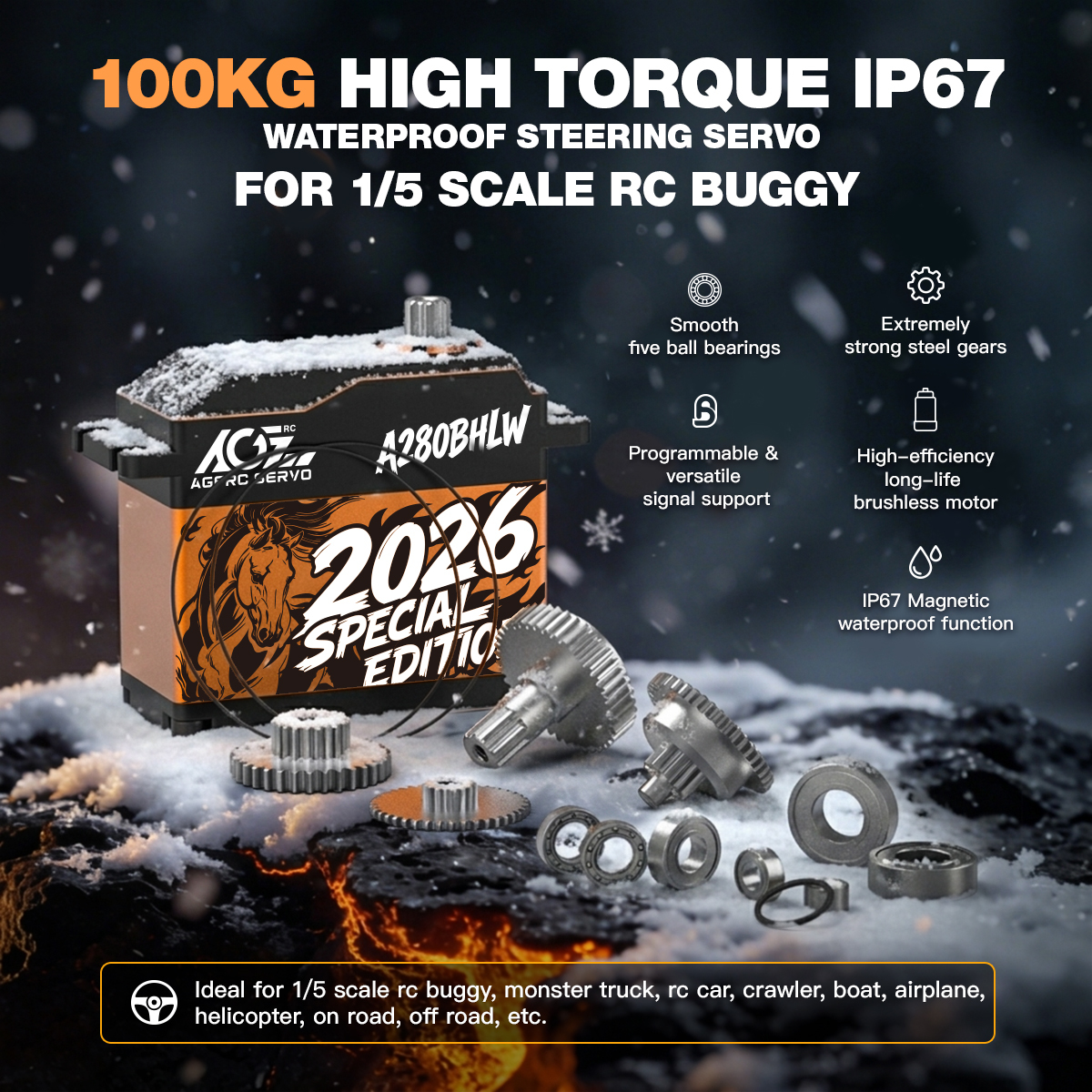

Case Material

AL6061T6

Gear Material

Strength Steel

Motor Type

Brushless

Operating Angle

180° ± 10°

Horn Gear Spline

15T-ɸ7.8 mm

Dimension

65.8*30.0*59.0mm

Net Weight

284.3 g(10.03 oz)

Operation Speed

0.180 sec/60° @4.8V

0.150 sec/60° @6.0V

0.125 sec/60° @7.4V

0.110 sec/60° @8.4V

Operation Torque

53.0 kg·cm (736 oz·in) @4.8V

76.0 kg·cm (1056 oz·in) @6.0V

90.0 kg·cm (1251 oz·in) @7.4V

100.0 kg·cm (1390 oz·in) @8.4V

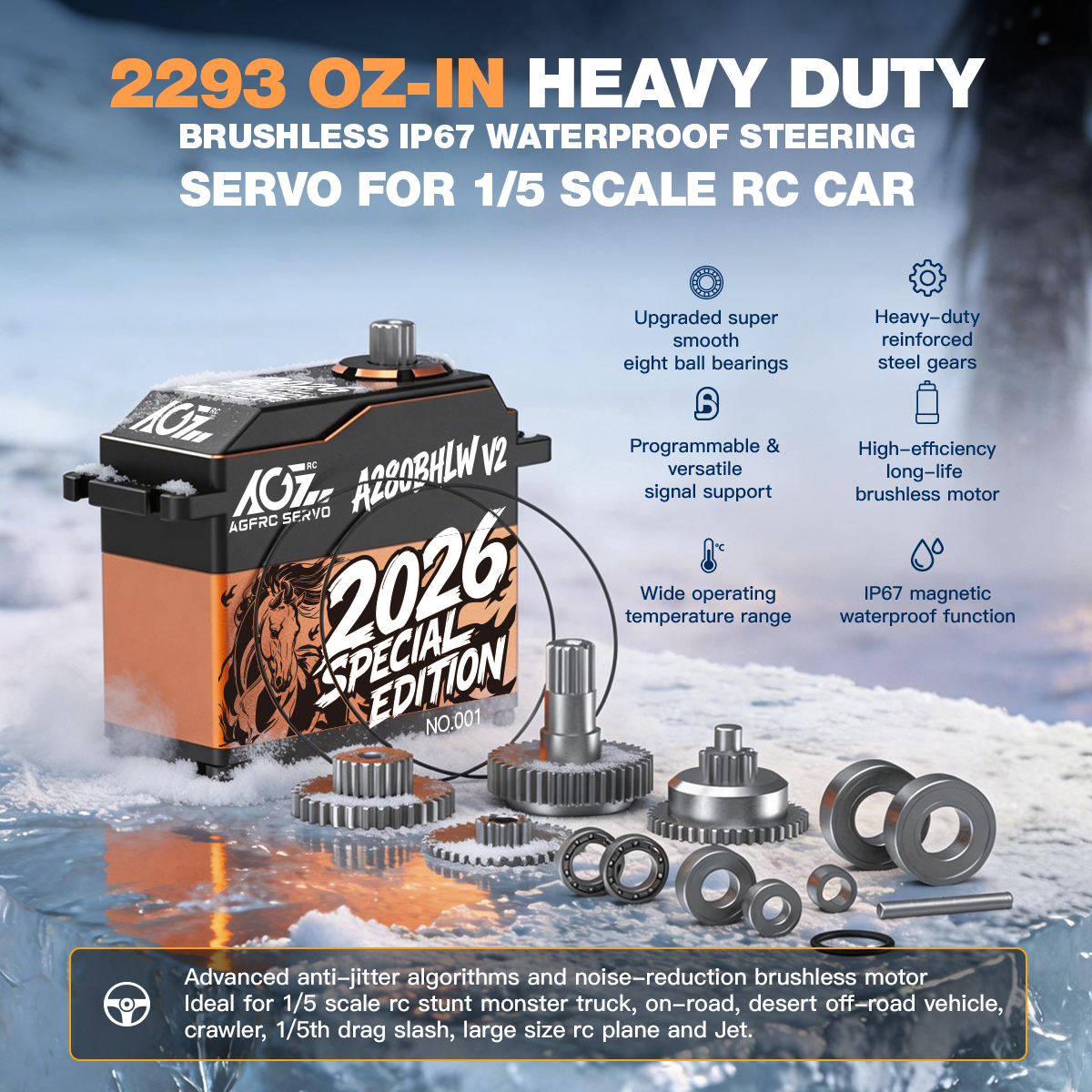

Case Material

AL6061T6

Gear Material

Strength Steel

Motor Type

Brushless

Operating Angle

180° ± 10°

Horn Gear Spline

15T-ɸ7.8 mm

Dimension

65.8*30.0*59.0mm

Net Weight

300 g(10.58 oz)

Operation Speed

0.240 sec/60° @4.8V

0.210 sec/60° @6.0V

0.180 sec/60° @7.4V

0.160 sec/60° @8.4V

Operation Torque

100.0 kg·cm (1390 oz·in) @4.8V

120.0 kg·cm (1668 oz·in) @6.0V

145.0 kg·cm (2015 oz·in) @7.4V

165.0 kg·cm (2293 oz·in) @8.4V

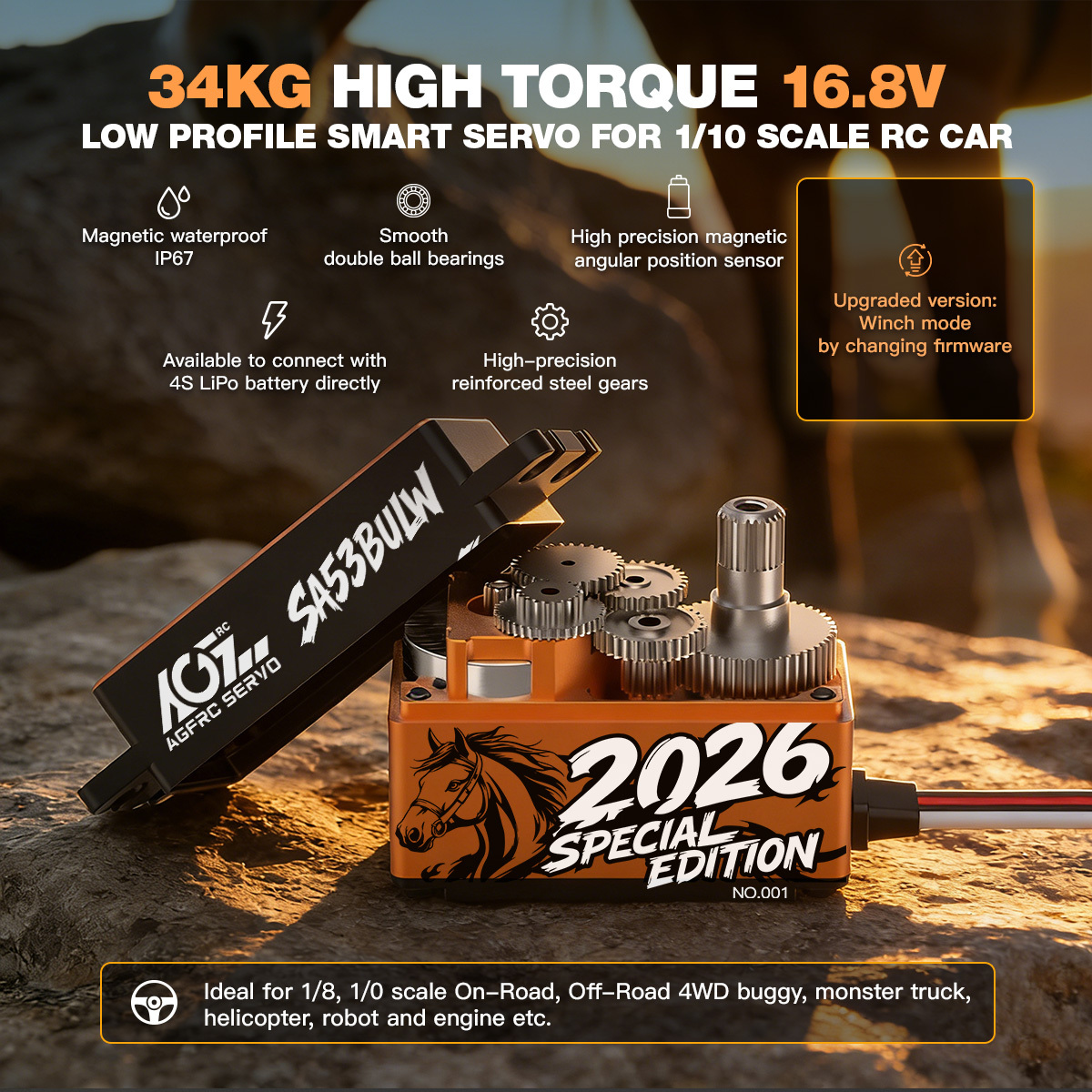

Case Material

AL6061T6

Gear Material

Strength Steel

Motor Type

Brushless

Operating Angle

180° ± 10°

Horn Gear Spline

25T-ɸ5.92 mm

Dimension

40.8*20.8*30.2mm

Net Weight

66.5 g(2.35 oz)

Operation Speed

0.105 sec/60° @12.0V

0.092 sec/60° @14.4V

0.085 sec/60° @16.0V

0.080 sec/60° @16.8V

Operation Torque

26.0 kg·cm (361 oz·in) @12.0V

30.0 kg·cm (417 oz·in) @14.4V

33.0 kg·cm (458 oz·in) @16.0V

34.0 kg·cm (472 oz·in) @16.8V

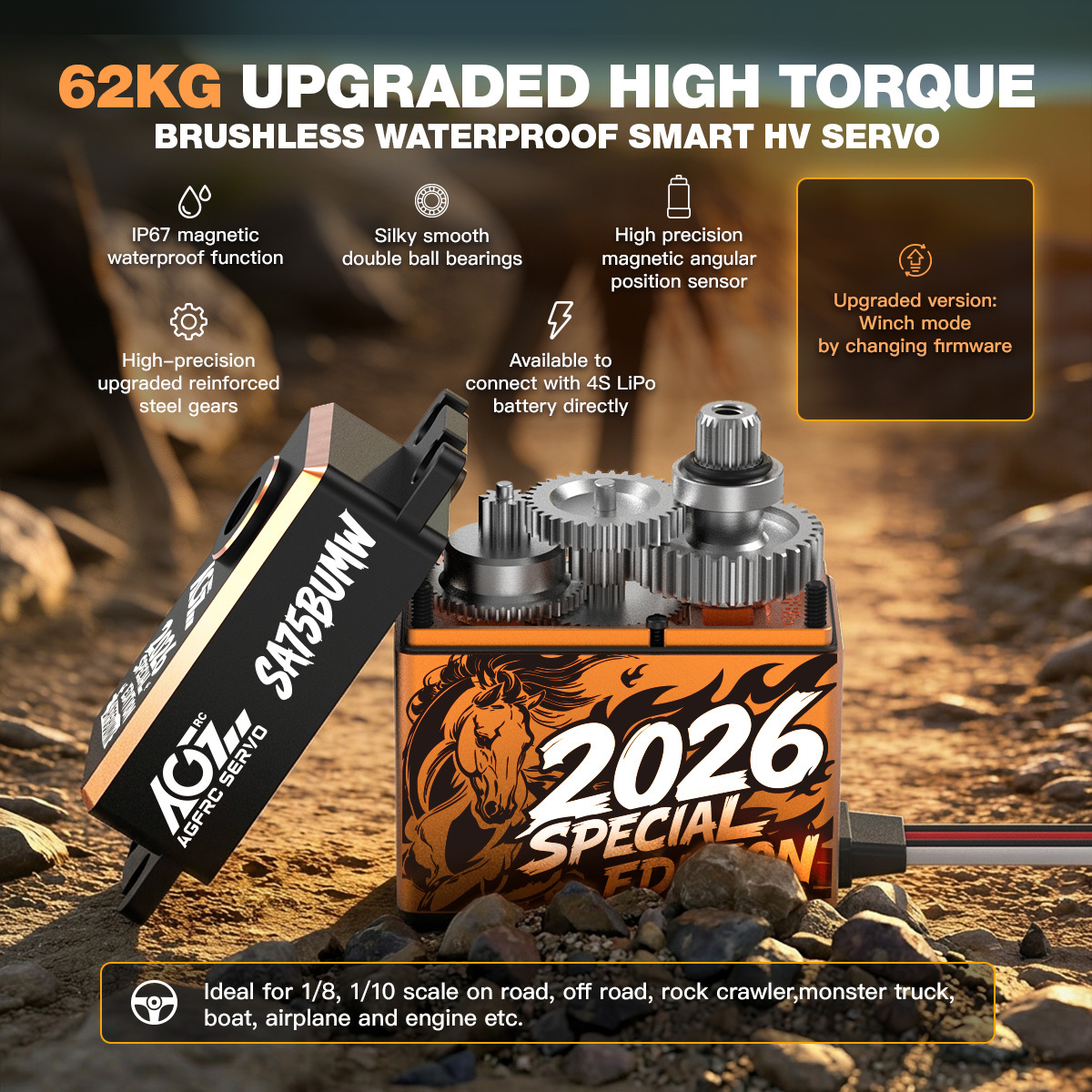

Case Material

AL6061T6

Gear Material

Strength Steel

Motor Type

Brushless

Operating Angle

180° ± 10°

Horn Gear Spline

25T-ɸ5.92 mm

Dimension

40*20*40.5mm

Net Weight

88.5 g(3.12 oz)

Operation Speed

0.125 sec/60° @12.0V

0.102 sec/60° @14.4V

0.098 sec/60° @16.0V

0.092 sec/60° @16.8V

Operation Torque

48.0 kg·cm (667 oz·in) @12.0V

54.0 kg·cm (750 oz·in) @14.4V

60.0 kg·cm (834 oz·in) @16.0V

62.0 kg·cm (861 oz·in) @16.8V
